Field Service Ver. 1.0 Aug. 2005 7. Other
49
bizhub 200/250/350Maintenance
7.3 Disassembly/Assembly procedure

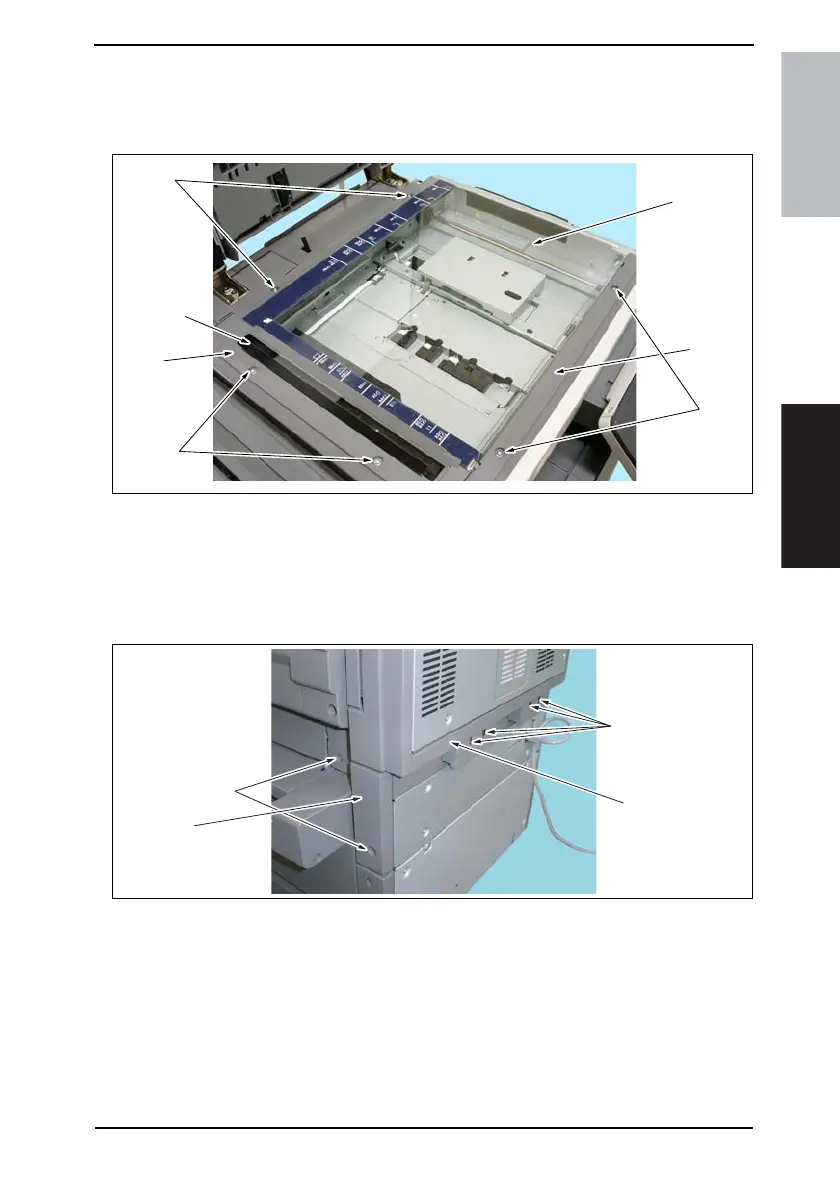

7.3.1 IR Upper Left Cover/Original Scanning Glass/Front Holding Bracket/Origi-
nal Glass
1. Remove two Screws [1], and remove the IR Upper Left Cover [2].
2. Remove the Original Scanning Glass [3].
3. Remove two Screws [4], and remove the Front Holding Bracket [5].
4. Remove two Screws [6], and remove the Original Glass [7].
7.3.2 Lower Rear Cover/Lower Right Rear Cover/Tray Rear Cover
1. Remove four Screws [1], and remove the Lower Rear Cover [2].
2. Remove two Screws [3], and remove the Lower Right Rear Cover [4].
4040F2C677DA
[1]
[2]
[3]
[6]
[7]
[5]
[4]
4040F2C661DA
[1]
[2]
[4]
[3]
