Develop ineo 350 - Cleaning of Miscellaneous Rolls; Cleaning of the Pick-Up Roller, Feed Roller and Separation Roller

Field Service Ver. 1.0 Aug. 2005 2. Periodical check
7
DF-605Maintenance

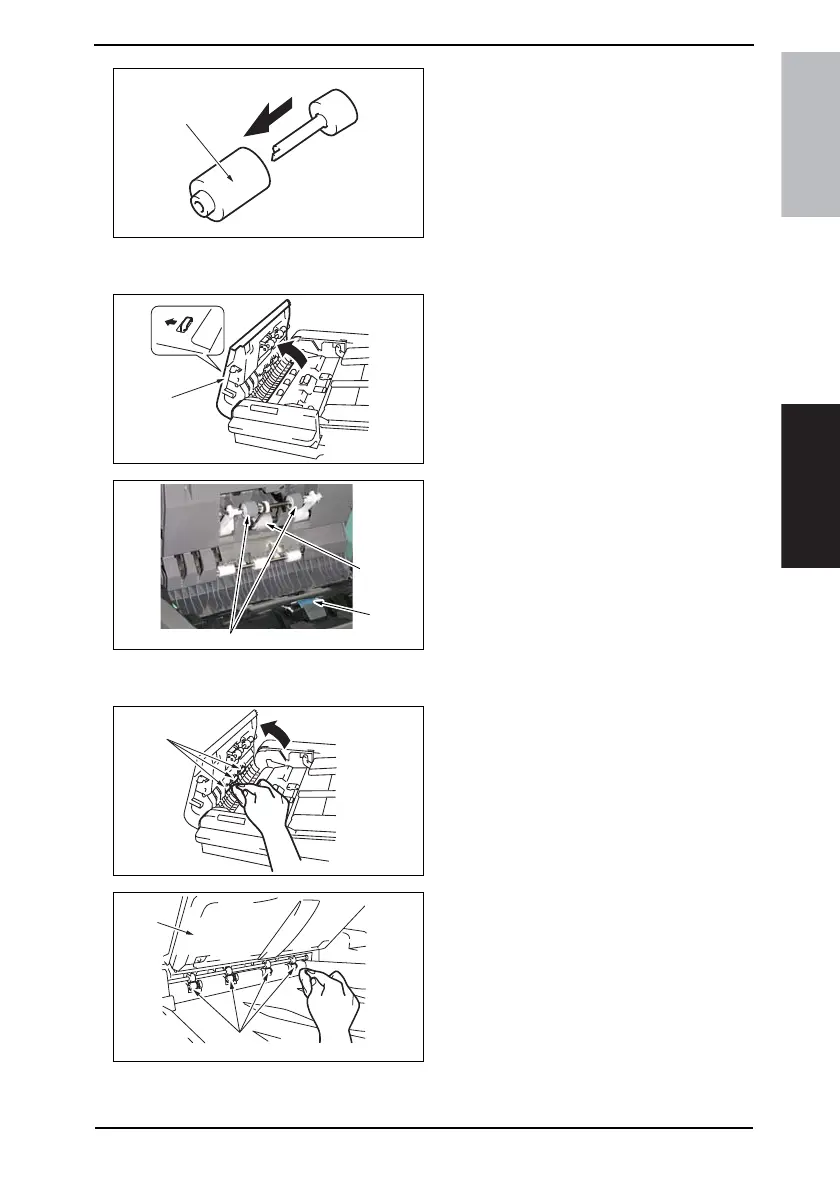

5. Remove the Separation Roller [7]
from the shaft.
2.1.3 Cleaning of the Pick-up Roller, Feed Roller and Separation Roller
1. Open the Upper Door [1].
2. Using a soft cloth dampened with
alcohol, wipe the Pick-up Roller [2],
Feed Roller [3] and Separation
Roller [4].
2.1.4 Cleaning of Miscellaneous Rolls
1. Open the Upper Door [1].
2. Using a soft cloth dampened with
alcohol, wipe the roll [2].
3. Lift up the Original Feed Tray [3].
4. Using a soft cloth dampened with
alcohol, wipe the roll [4].
4344F2C508DA
[7]
4344F2C500DA
[1]
4344F2C509DA
[2]
[4]
[3]
4344F2C510DA
[2]
4344F2C511DA
[4]
[3]
