Field Service Ver. 1.0 Aug. 2005 2. Periodical check
5
FS-508/PU-501/OT-601Maintenance
Maintenance
2. Periodical check
2.1 Maintenance procedure (Periodical check parts)
NOTE
• The alcohol described in the cleaning procedure of Maintenance represents the
isopropyl alcohol.

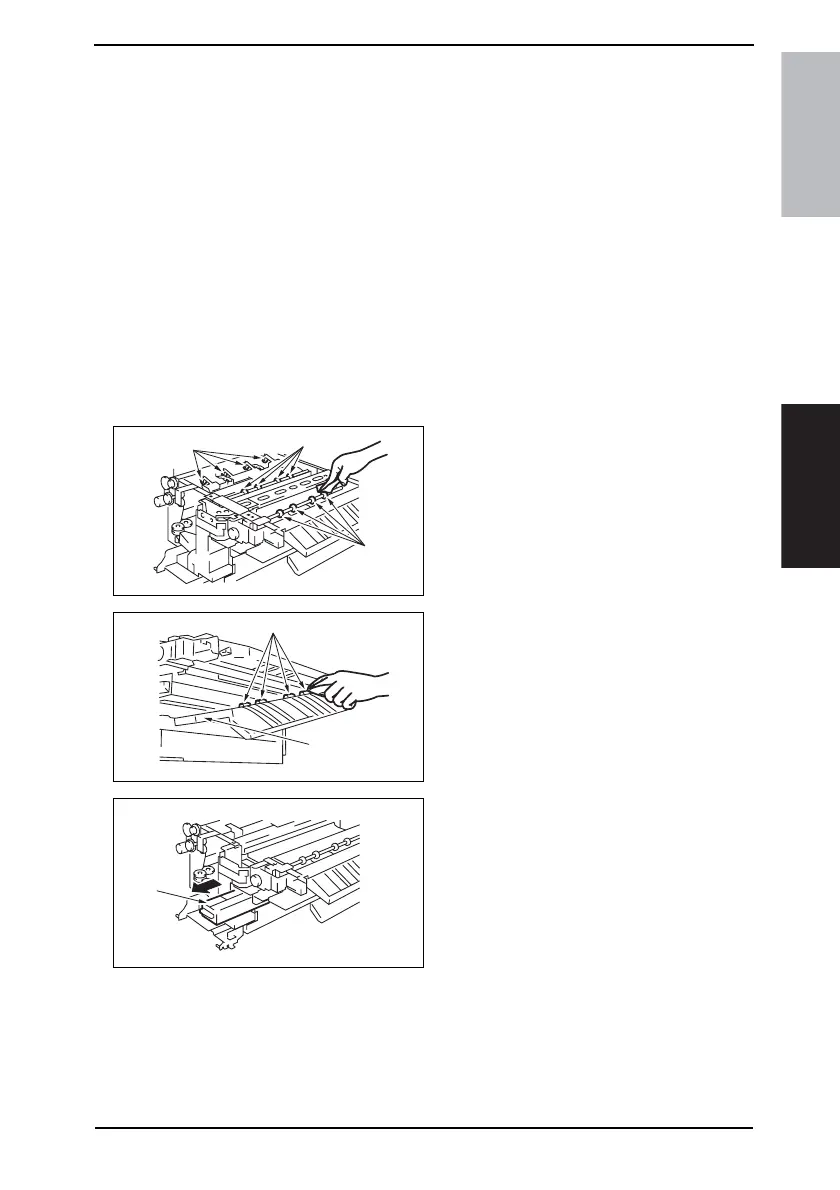

2.1.1 Cleaning of the Roller and Roll
1. Remove the Sorted Copy Tray.
☞ 15
2. Remove the Horizontal Transport Unit.
☞ 15
3. Remove the Horizontal Transport Top Cover.
☞ 12
4. Using a soft cloth dampened with
alcohol, wipe the roller and roll [1].
5. Lower Processing Guide FN1 [2].
6. Using a soft cloth dampened with
alcohol, wipe the roll [3].
7. Remove Punch Waste Storage Box
FN3.1 [4].
(only when PU-501 is installed)
4349F2C500DA
[1]
[1]
[1]
4349F2C501DA
[2]
[3]
4349F2C502DA
[4]
