Develop ineo 350 - Troubleshooting; 7 Jam Display; Misfeed Display; Sensor Layout

Field Service Ver. 1.0 Aug. 2005 9. Jam Display
27
SD-502
Troubleshooting
Troubleshooting

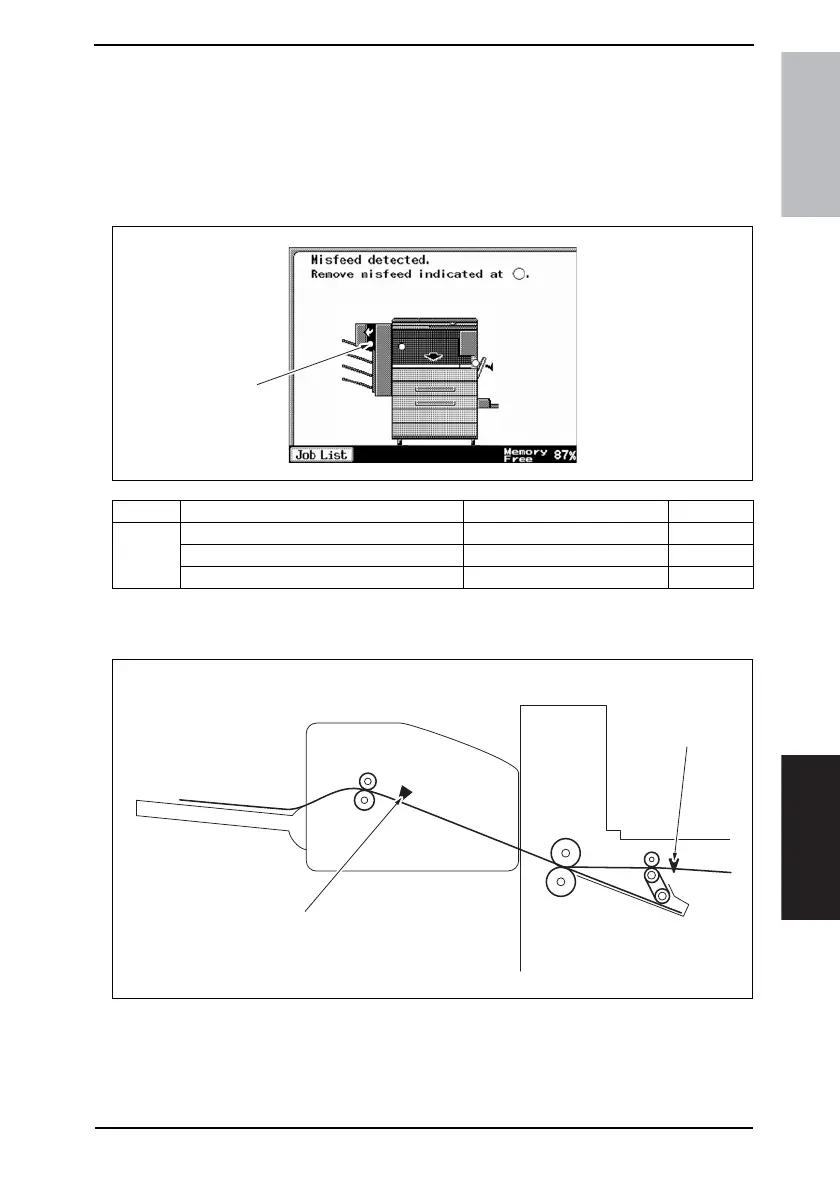

9. Jam Display
9.1 Misfeed Display
• When a paper misfeed occurs, the misfeed message, misfeed location, and paper loca-
tion are displayed on the Touch Panel of the machine.
9.2 Sensor layout
Display Misfeed Location Misfeed processing location Action
[1]
Creasing Section Misfeed Front Door
☞ 28
Staple Unit Misfeed Front Door
☞ 29
Paper Bundle Exit Misfeed Front Door
☞ 30
4511F4E502DA
[1]
[1] Saddle Exit Sensor PC20-SK
[2] Transport Sensor PC5-FN
4511F4C501DA
[1]
[2]
