Develop ineo 350 - Sensor Layout

7. Jam Display Field Service Ver. 1.0 Aug. 2005
22
PC-102/PC-202
Troubleshooting

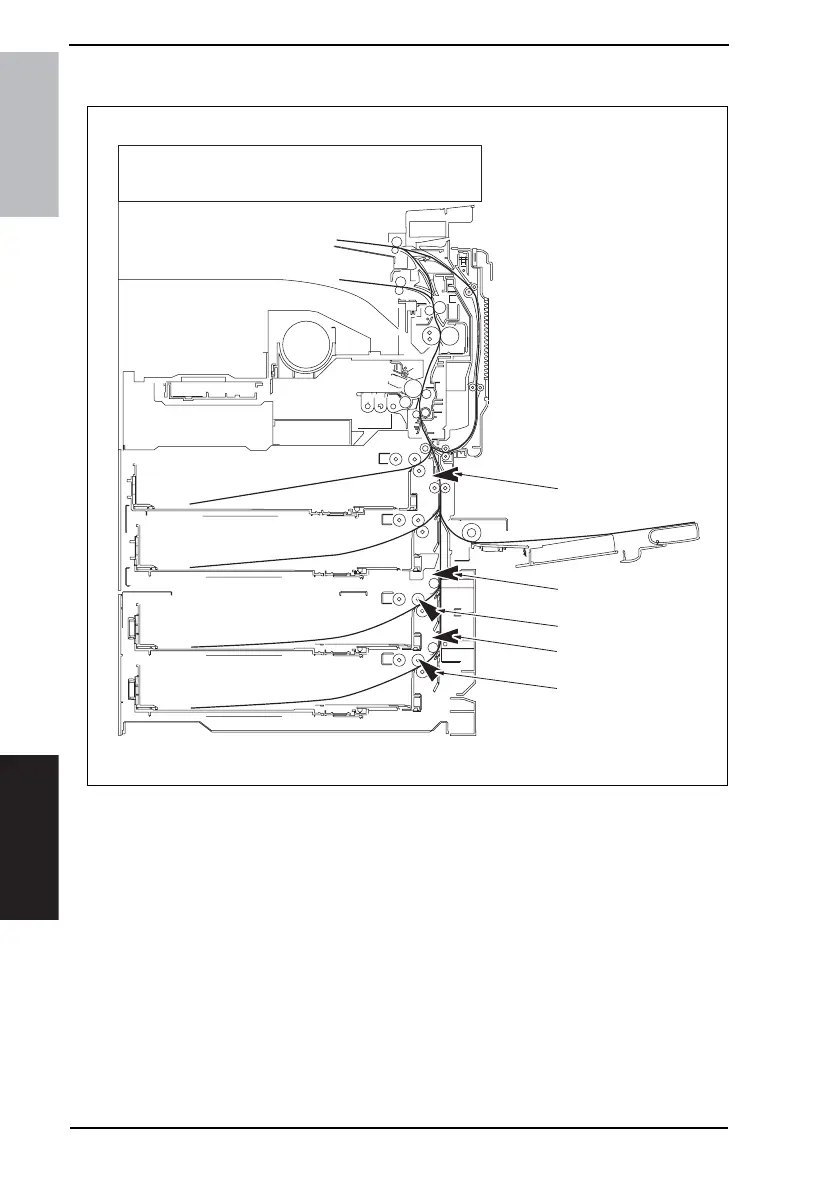

7.2 Sensor layout
[1] Vertical Conveyance Sensor PC2 [4] Tray4 Vertical Conveyance
Sensor
PC126-PF
[2] Tray3 Vertical Conveyance
Sensor
PC117-PF [5] Tray4 Paper Take-Up Sensor PC125-PF
[3] Tray3 Paper Take-Up Sensor PC116-PF
4061F4C500DA
[2]
[1]
[3]
[4]
[5]
