Field Service Ver. 1.0 Aug. 2005 4. Periodical check
21
bizhub 200/250/350Maintenance

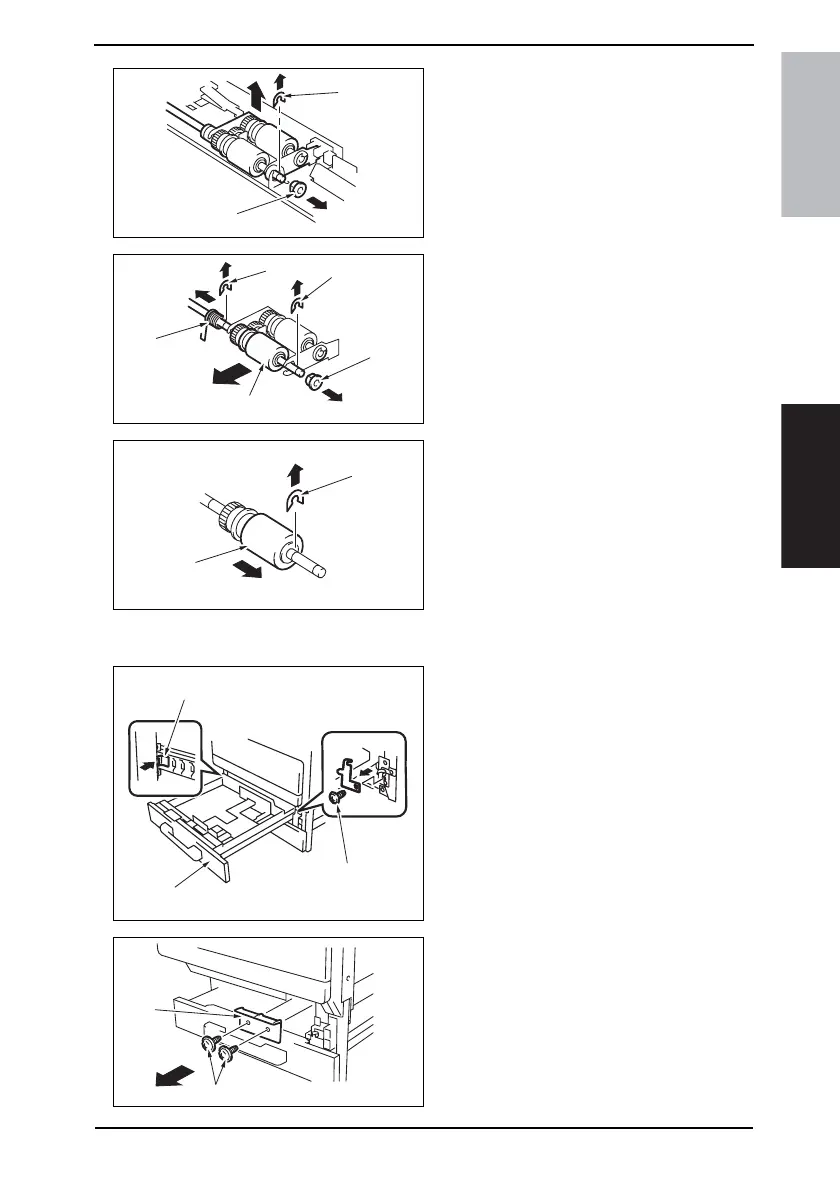

6. Remove the C-clip [12] and the bear-
ing [13].
7. Remove the C-clip [14], E-ring [15],
bearing [16] and spring [17] to
remove the Tray 1 Feed Roller Assy
[18].
8. Remove the C-clip [19] and the Tray
1 Feed Roller [20].
9. To reinstall, reverse the order of
removal.
10. Select [Tech. Rep. Mode] →
[Counter] → [Special Parts Counter]
→ [Tray 1] and clear the counter.
4.5.4 Replacing the Tray 1 Pick-up Roller
1. Remove the screw [1] and, holding
the stopper [2], remove Tray 1 [3].
2. Remove two screws [4] and the Con-
nector Cover [5].
4040F2C513DA
[13]
[12]
4040F2C514DA
[15]
[14]
[16]
[18]
[17]
4040F2C515DA
[19]
[20]
4040F2C508DA
[1]
[2]
[3]
4040F2C509DA
[4]
[5]
