Develop ineo 350 - Pc-402 (Option)

Field Service Ver. 1.0 Aug. 2005 23. Parts layout drawing
281
bizhub 200/250/350Appendix

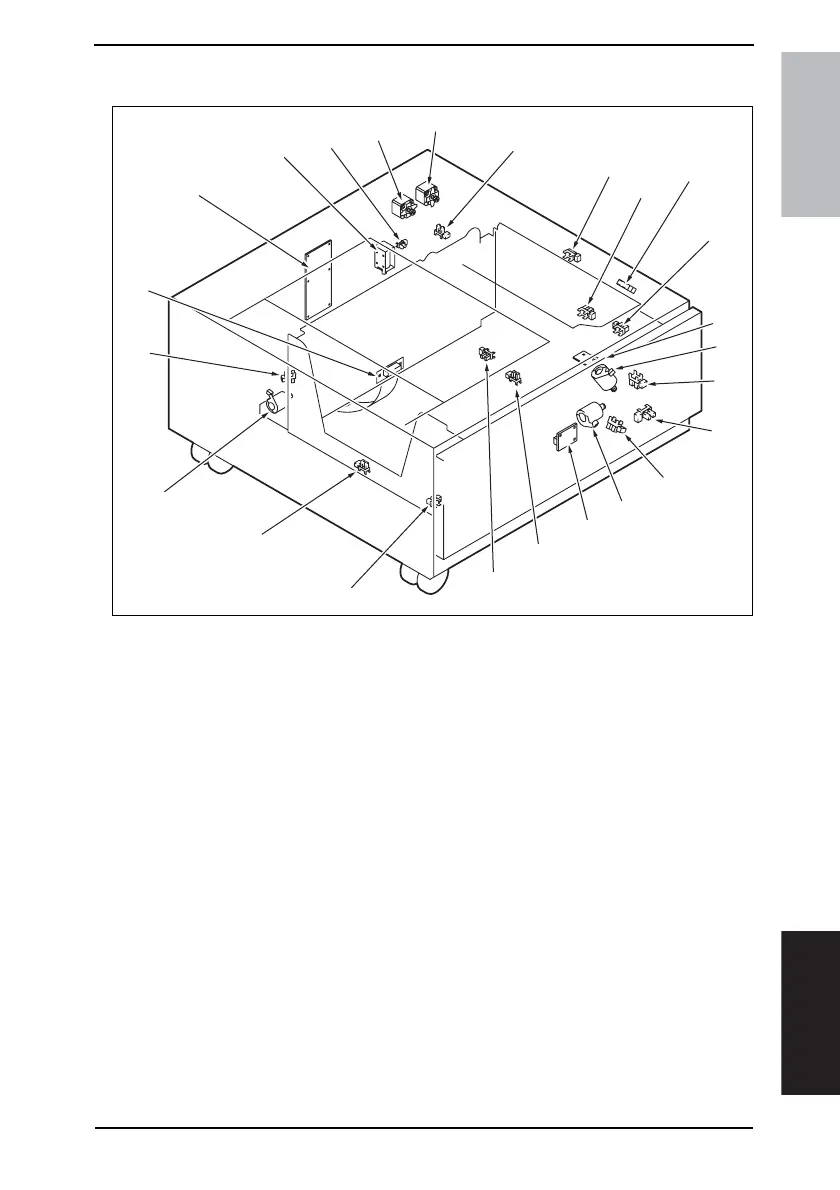

23.6 PC-402 (Option)
[1] Vertical Conveyance Motor (M2-LCT) [13] Paper Descent Key (UN1-LCT)
[2] Right Lower Door Sensor (PC5-LCT) [14] Shifter Return Position Sensor (PC11-LCT)
[3] Vertical Conveyance Sensor (PC2-LCT) [15] Tray Lower Position Sensor (PC13-LCT)
[4] Tray Upper Limit Sensor (PC4-LCT) [16] Shift Tray Paper Empty Sensor (PC9-LCT)
[5] Paper Feed Sensor (PC1-LCT) [17] Shifter Home Position Sensor (PC12-LCT)
[6] Upper Paper Empty Sensor (PC3-LCT) [18] Shift Gate Motor (M3-LCT)
[7] Paper Empty Board (PWB-E LCT) [19] Shift Gate Home Position Sensor (PC14-LCT)
[8] Elevator Motor (M5-LCT) [20] Interface Board (PWB-H LCT)
[9] Elevator Motor Pulse Sensor (PC10-LCT) [21] Main Control Board (PWB-C1 LCT)
[10] Lower Limit Sensor (PC7-LCT) [22] Tray Lock Solenoid (SL1-LCT)
[11] Shift Motor Pulse Sensor (PC8-LCT) [23] Tray Set Sensor (PC6-LCT)
[12] Shift Motor (M4-LCT) [24] Paper Feed Motor (M1-LCT)
4037F5C512DA
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
