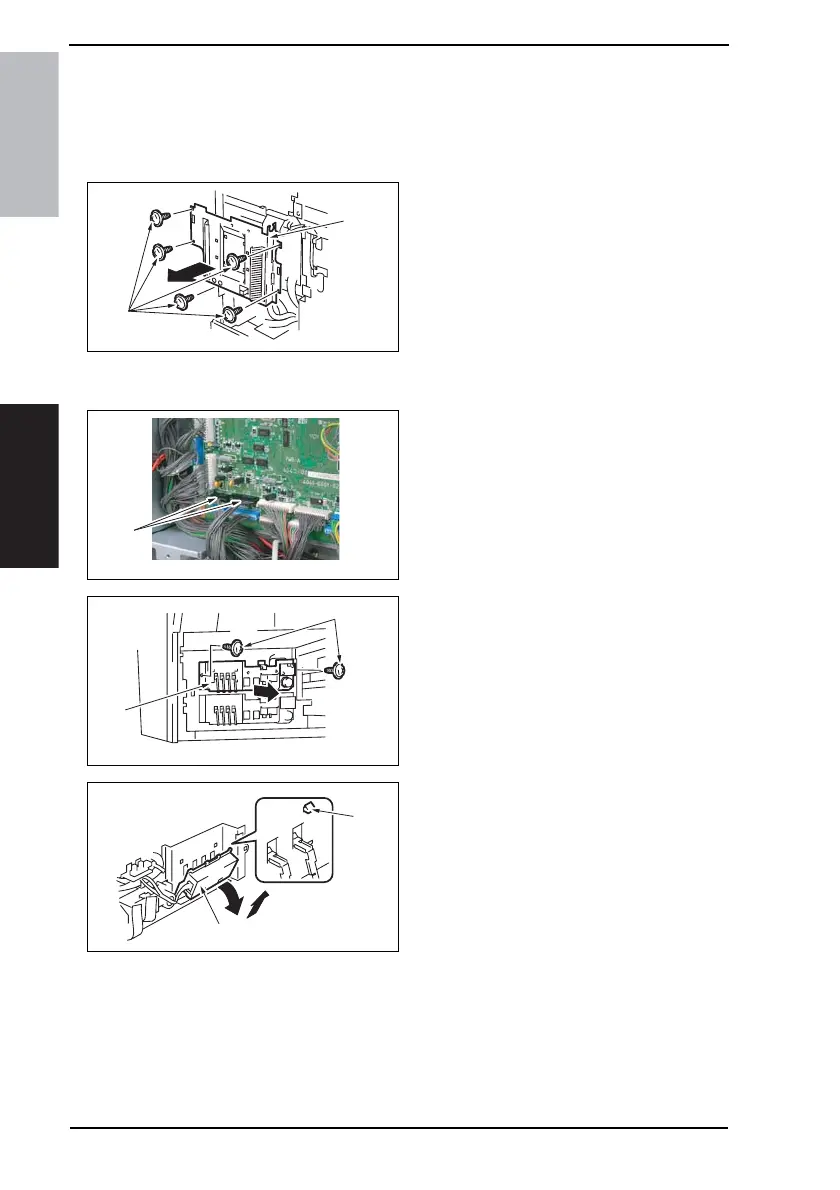

7.3.15 FD Paper Size Board 1
1. Remove the Upper Rear Cover.
☞ 50
2. Remove the Rear Cover.
☞ 51
3. Remove five screws [1] and the
Mechanical Control Board Cover [2].
4. Remove the Tray 1.
☞ 56
5. Disconnect two connectors (PJ23,
PJ24) [3] from the Mechanical Con-
trol Board.
6. Remove two screws [4] and the Lift-
Up Assy [5].
7. Remove four tabs [6] and the FD
Paper Size Board Assy [7].
4040F2C561DA
[2]
[1]
4040F2C656DA
[3]
4040F2C573DA
[5]
[4]
4040F2C572DA
[6]
[7]
To Next Page
