Develop ineo 350 - 2 Periodical Check; Maintenance Procedure (Periodical Check Parts); Replacing the Separation Roller Assy

Field Service Ver. 1.0 Aug. 2005 2. Periodical check
3
PC-402Maintenance
Maintenance
2. Periodical check
2.1 Maintenance procedure (Periodical check parts)

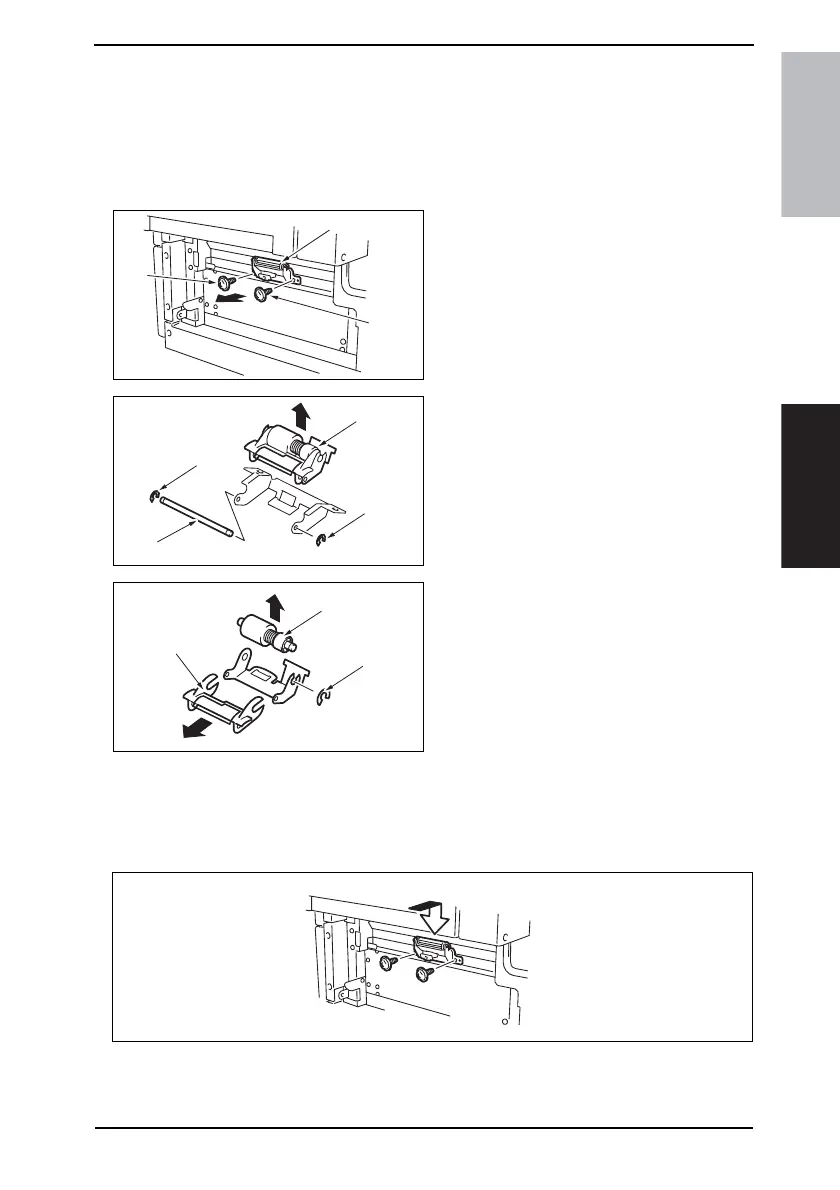

2.1.1 Replacing the Separation Roller Assy
1. Remove the Right Door.
☞ 10
2. Remove two screws [1] and remove
the Paper Separation Roller Mount-
ing Bracket Assy [2].
3. Remove two C-rings [3] and the
shaft [4], and remove the Paper Sep-
aration Roller Fixing Bracket Assy
[5].
NOTE
• Be careful not to lose spring at this
time.
4. Remove the C-ring [6], the Guide [7],
and remove the Separation Roller
Assy [8].
NOTE
• Install the Separation Roller Assy while pressing the holder down so that it aligns
to the metal bracket of the machine.
• Make sure that the Separation Roller Assy is not tilted to the right or left when
installed.
NOTE
• Replace the Separation Roller Assy, Paper Take-up Roller and Pick-up Roller at the
same time.
4348fs2509c0
[2]
[1]
[1]
[3]
[5]
[3]
[4]
4061F2C507DA
[6]
[8]
[7]
4061F2C508DA
4348fs2623c0
