7.4.5 Tray 1 Separation Roller

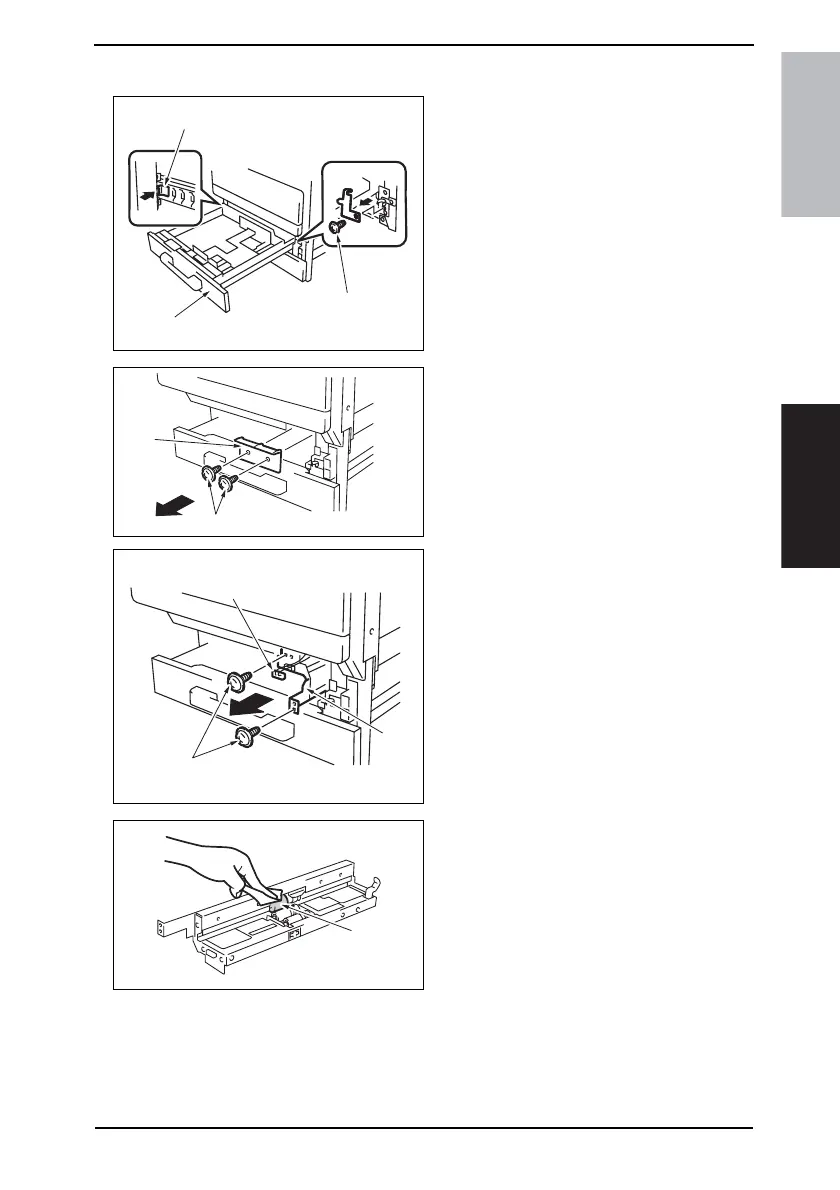

1. Remove the screw [1] and, holding
the stopper [2], remove the Tray 1
[3].
2. Remove two screws [4] and the Con-
nector Cover [5].
3. Remove the connector [6].
4. Remove two screws [7] and the Tray
1 Feed Roller Assy [8].
5. Using a soft cloth dampened with
alcohol, wipe the Tray 1 Separation
Roller [9] clean of dirt.
4040F2C508DA
[1]
[2]
[3]
4040F2C509DA
[4]
[5]
4040F2C510DA
[8]
[7]
[6]
4040F2C519DA
[9]
