8.2 Fold Position Adjustment
NOTE
Make this adjustment after any of the following procedures has been performed.
• When the Crease Unit has been replaced.
• When a deviation occurs in the crease.
• When fold angle adjustment has been made.

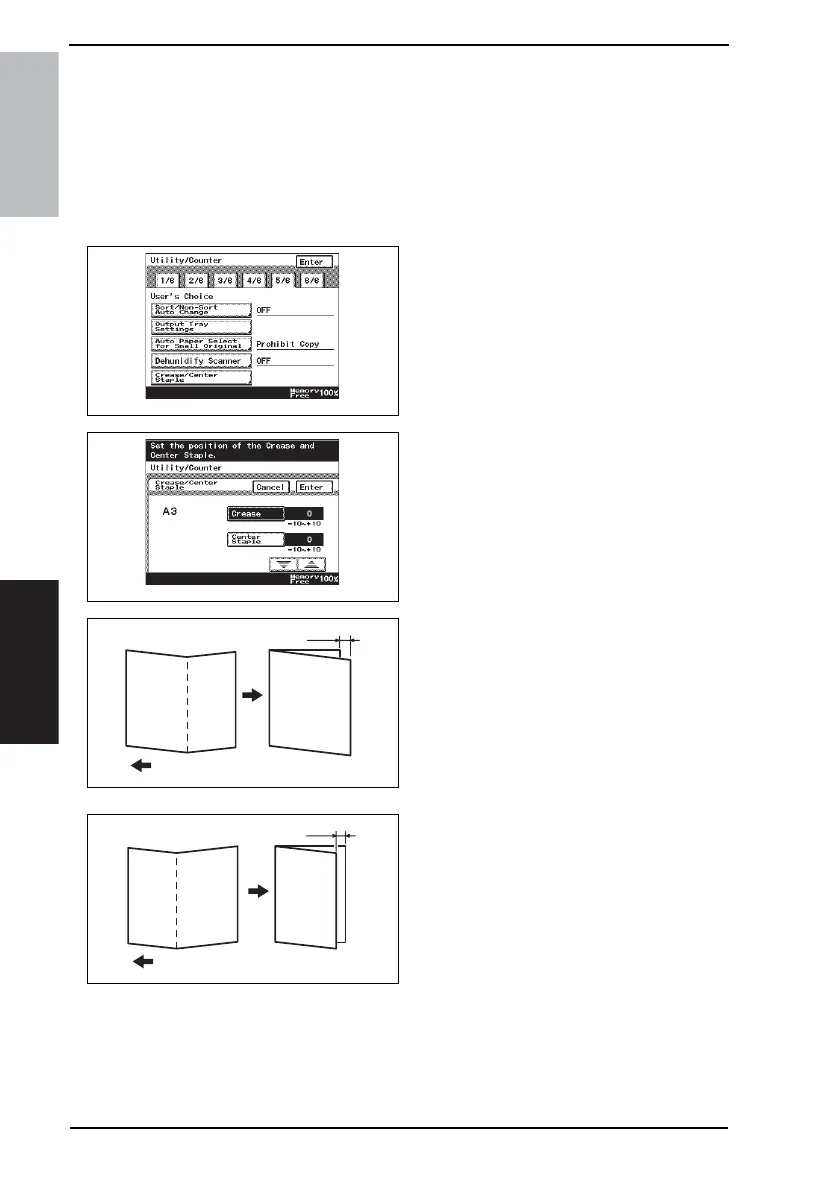

1. Enter the Booklet + Crease mode and make a copy. (A3 Size)
2. Press the Utility/Counter key, and
touch [User’s Choice].
3. Touch the [5/6] tab.
4. Touch [Crease/Center Staple].
5. Select [A3] and touch [Enter].
6. Touch [Crease].
7. Check the copy of step 1 and make
the following adjustment.
If the fold is offset as shown on the
left.
8. Fold the copy along the crease and
measure width A.
Specification: 0 ± 1.5 mm
9. Touch [▲] and set the appropriate
numeric value.
Adjustment range: 0 to +10
(1 increment 0.5 mm)
If the fold is offset as shown on the
left.
10. Fold the copy along the crease and
measure width B.
Specification: 0 ± 1.5 mm
11. Touch [▼] and set the appropriate
numeric value.
Adjustment range: 0 to -10
(1 increment 0.5 mm)
12. Touch [Enter].
13. Make another copy, and check the deviation.
4511F3E513DA
4511F3E514DA
4511F3C505DA
A
Exit direction
4511F3C506DA
B
Exit direction
