Field Service Ver. 1.0 Aug. 2005 8. Mechanical adjustment
29
FS-508/PU-501/OT-601Adjustment / Setting
8. Mechanical adjustment
8.1 Staple Position Adjustment
NOTE
Make this adjustment after any of the following procedures has been performed.
• When the Stapler has been replaced.
• When staple position is misaligned.
1. Set the staple mode and make a
copy.

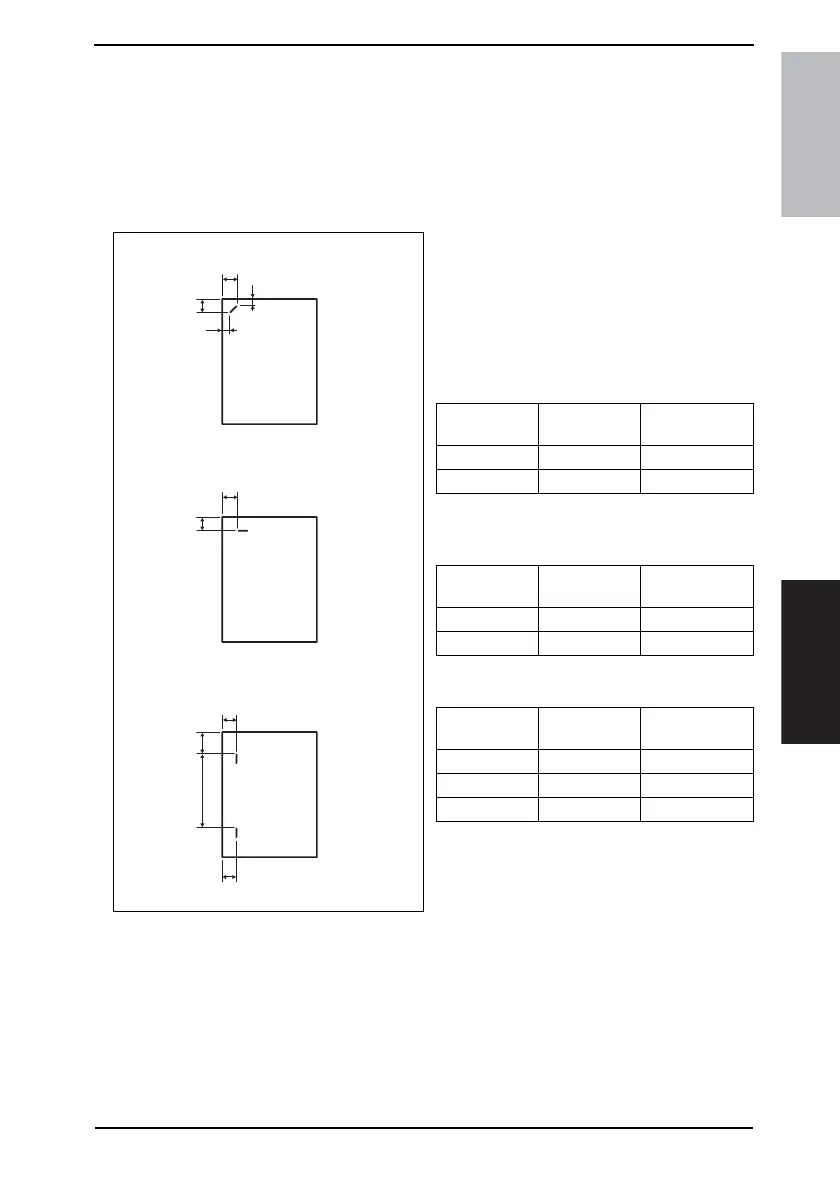

2. Check the staple position of the
paper.
• 1-Point Tilted Staple
(Paper Width: 216 to 297 mm)
279 to 297 mm: 45° tilt,
B5, B4R: 30° tilt
• 1-Point Parallel Staple
(Paper Width: 182 to 216 mm)
• 2-Point Staple
Y = (paper width-X-11) / 2
X = A3R, A4: 137
B4R, B5: 114
A4R: 190
B5R: 162
Substitute above into the equation.
3. If the staple position is misaligned,
adjust with the following procedure.
Measurement
position
Specification
Adjustment
range
A, C 4.4 mm —
B, D 12.1 mm +1 mm to -2mm
Measurement
position
Specification
Adjustment
range
A 4.5 mm —
B 6 mm +1 mm to -2mm
Measurement
position
Specification
Adjustment
range
C, F 6 mm +1 mm to -2mm
DY —
EX —
4349F3C506DA
A
B
C
D
A
B
C
D
F
E
2-Point Staple
1-point parallel staple
1-Point Tilted Staple
