Develop ineo 350 - Cleaning Procedure; Paper Take-Up Roller; Pick-Up Roller; Separation Roller

3. Other Field Service Ver. 1.0 Aug. 2005
14
PC-402
Maintenance
3.4 Cleaning procedure
NOTE
• The alcohol described in the cleaning procedure represents the isopropyl alcohol.

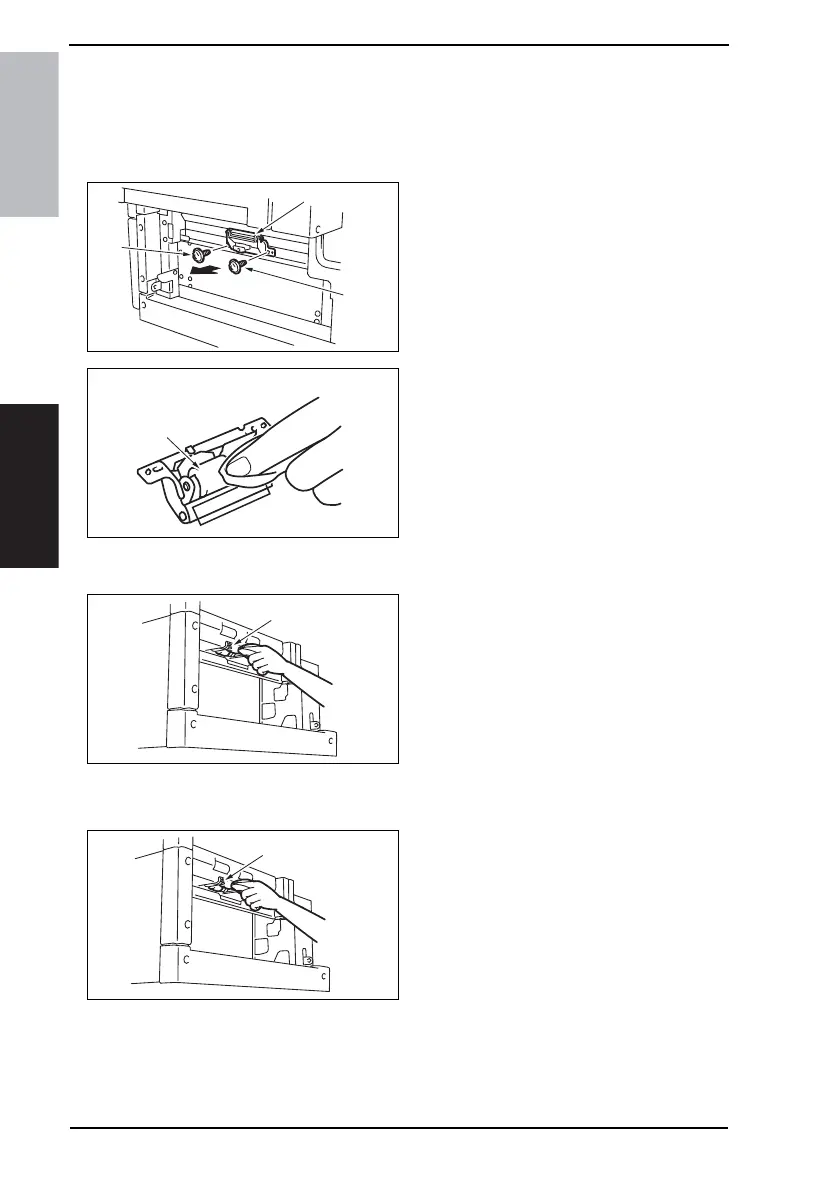

3.4.1 Separation Roller
1. Remove the Right Door.
☞ 10
2. Remove two screws [1] and remove
the Paper Separation Roller Mount-
ing Bracket Assy [2].
3. Using a soft cloth dampened with
alcohol, wipe the Separation Roller
[3] clean of dirt.
3.4.2 Paper Take-up Roller
1. Remove the Tray3.
2. Remove the Paper Separation Roller
Mounting Bracket Assy.
☞ See steps 1 to 2 of the cleaning pro-
cedure for “Separation Roller” on p.
14.
3. Using a soft cloth dampened with
alcohol, wipe the Paper Take-Up
Roller [1] clean of dirt.
3.4.3 Pick-up Roller
1. Remove the Tray3.
2. Remove the Paper Separation Roller
Mounting Bracket Assy.
☞ See steps 1 to 2 of the cleaning pro-
cedure for “Separation Roller” on p.
14.
3. Using a soft cloth dampened with
alcohol, wipe the Pick-up Roller [1]
clean of dirt.
4348fs2509c0
[2]
[1]
[1]
4348fs2510c0
[3]
4348fs2501c0
[1]
4348fs2513c0
[1]
