Field Service Ver. 1.0 Aug. 2005 3. Other
13
PC-402Maintenance

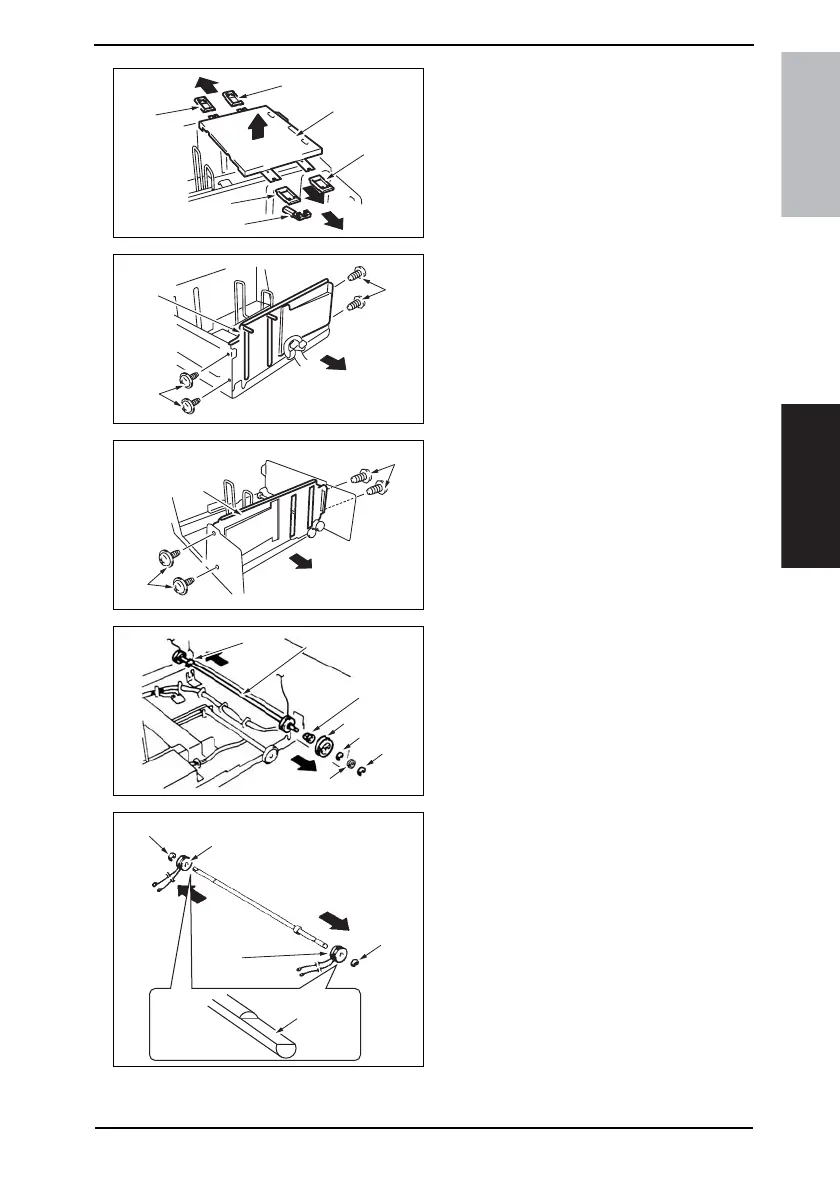

11. Remove the Ground Plate [17].
12. Remove four Cable Holding Jigs [18]
and remove the Main Drawer [19].
NOTE
• Use care not to bend the wires.
13. Remove four screws [20] and
remove the Rear Trailing Edge Assy
[21].
14. Remove four screws [22] and
remove the Front Trailing Edge Assy
[23].
15. Remove three C-rings [24], the bush-
ing [25], and two gears [26].
16. Remove the Take-up Drum Assy
[27].
17. Remove two C-rings [28]and the
Take-up Drum [29].
NOTE
• Take care not to lose fixing pins.
• When reinstalling the Take-up
Drum, check that the direction of
the wire coming from both Take-up
Drums are the same.
• Install so that cut parts [30] at both
ends of shaft face up.
4348fs2532c0
[19]
[18]
[18]
[17]
[18]
[18]
4348fs2533c0
[20]
[20]
[21]
4348fs2534c0
[23]
[22]
[22]
4348fs2535c0
[24]
[26]
[24]
[26]
[25]
[27]
[24]
4348fs2536c0
[28]
[29]
[28]
[29]
[30]
