3. Other Field Service Ver. 1.0 Aug. 2005
12
PC-402
Maintenance

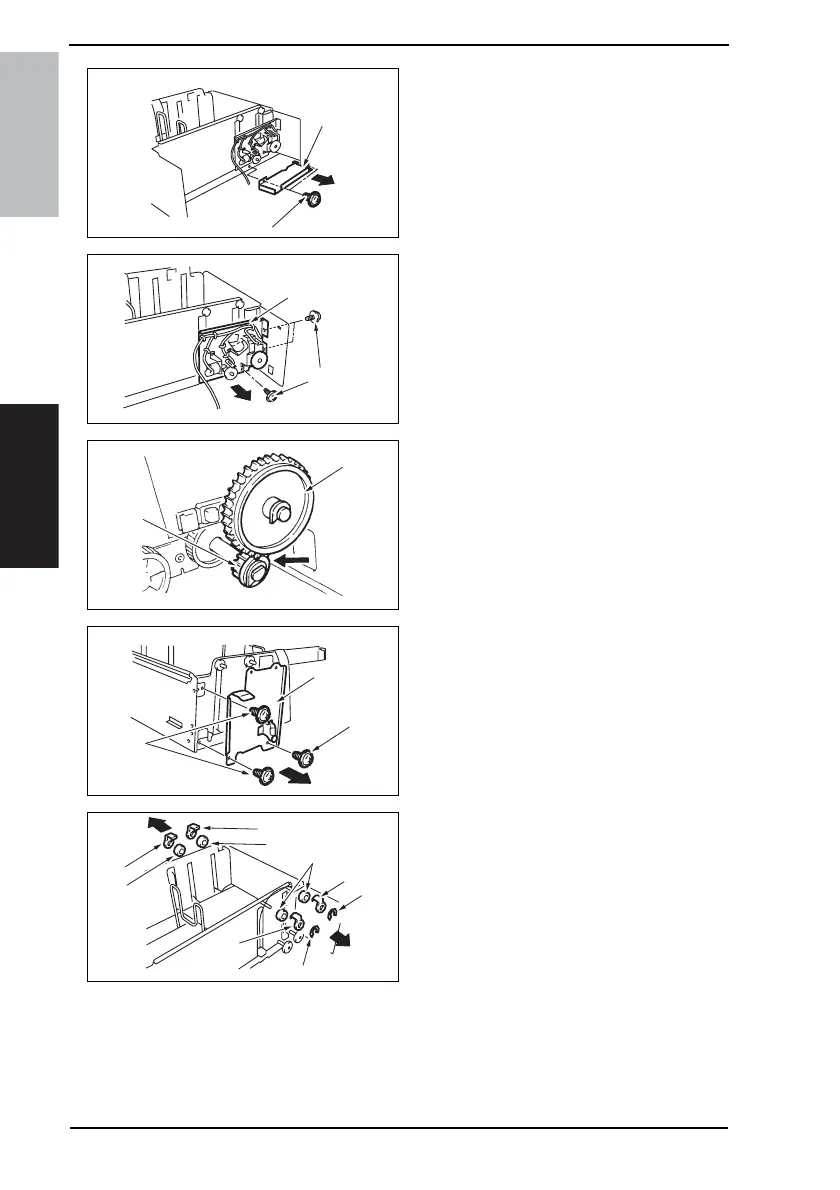

5. Remove two screws [6] and remove
the Driver Cover [7].
6. Remove three screws [8] and
remove the Driver Mounting Plate
Assy [9].
NOTE
• When assembling, be sure to
engage rib of gear 1 [10] with con-
vex section of gear 2 [11].
7. Remove three screws [12] and
remove the Reinforcement Bracket
Assy [13].
8. Remove two C-clips [14].
9. Remove four Pulley Covers [15].
10. Unhook four pulleys [16].
4348fs2527c0
[6]
[7]
4348fs2528c0
[9]
[8]
4348fs2529c0
[10]
[11]
4348fs2530c0
[12]
[12]
[13]
4348fs2531c0
[14]
[15]
[15]
[14]
[16]
[16]
[15]
[16]
[15]
