7.3.10 Rear Manual Bypass Cover/Front Manual Bypass Cover/Lower Right Cover

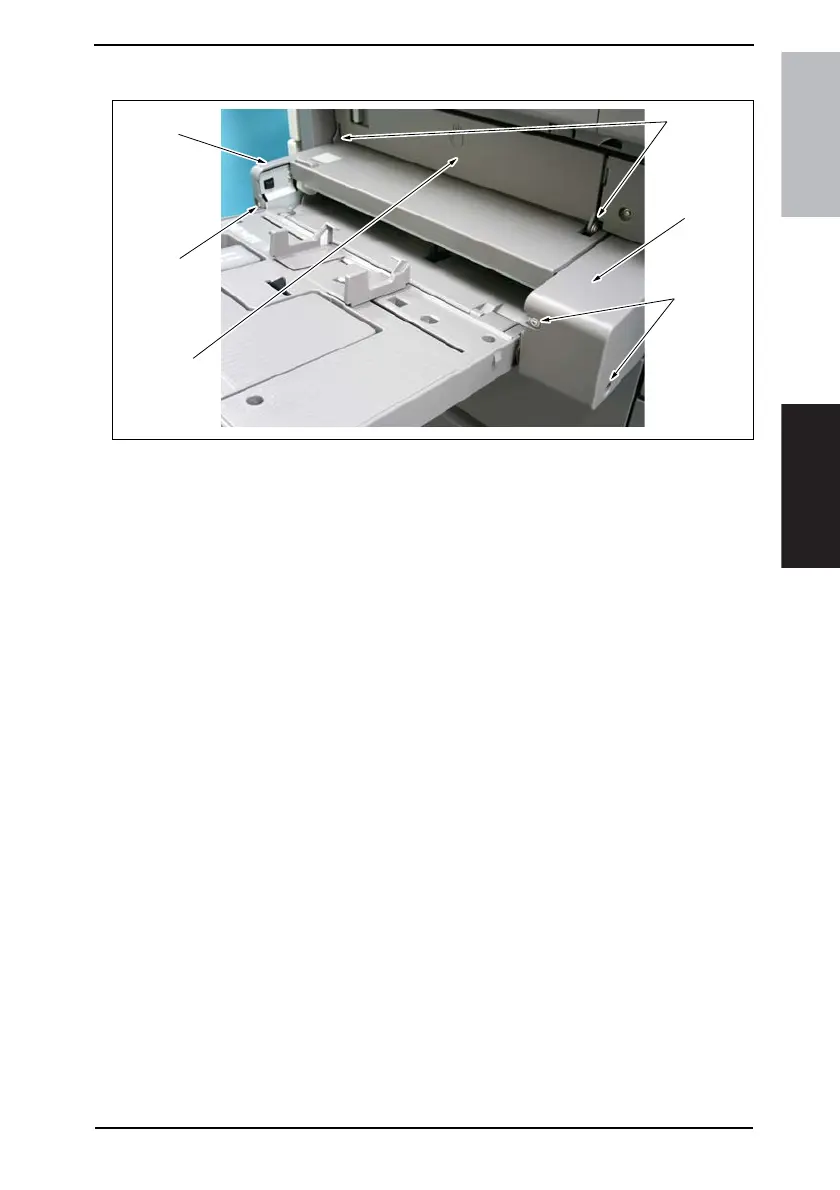

1. Remove two screws [1] and the Rear Manual Bypass Cover [2].
2. Remove the screw [3] and the Front Manual Bypass Cover [4].
3. Remove the Manual Bypass Unit.
☞ 71
4. Remove two tabs [5] and the Lower Right Door Cover [6].
4040F2C671DA
[6]
[3]
[4]
[5]
[2]
[1]
