Develop ineo 350 - Fs-508 (Option)

Field Service Ver. 1.0 Aug. 2005 23. Parts layout drawing
283
bizhub 200/250/350Appendix

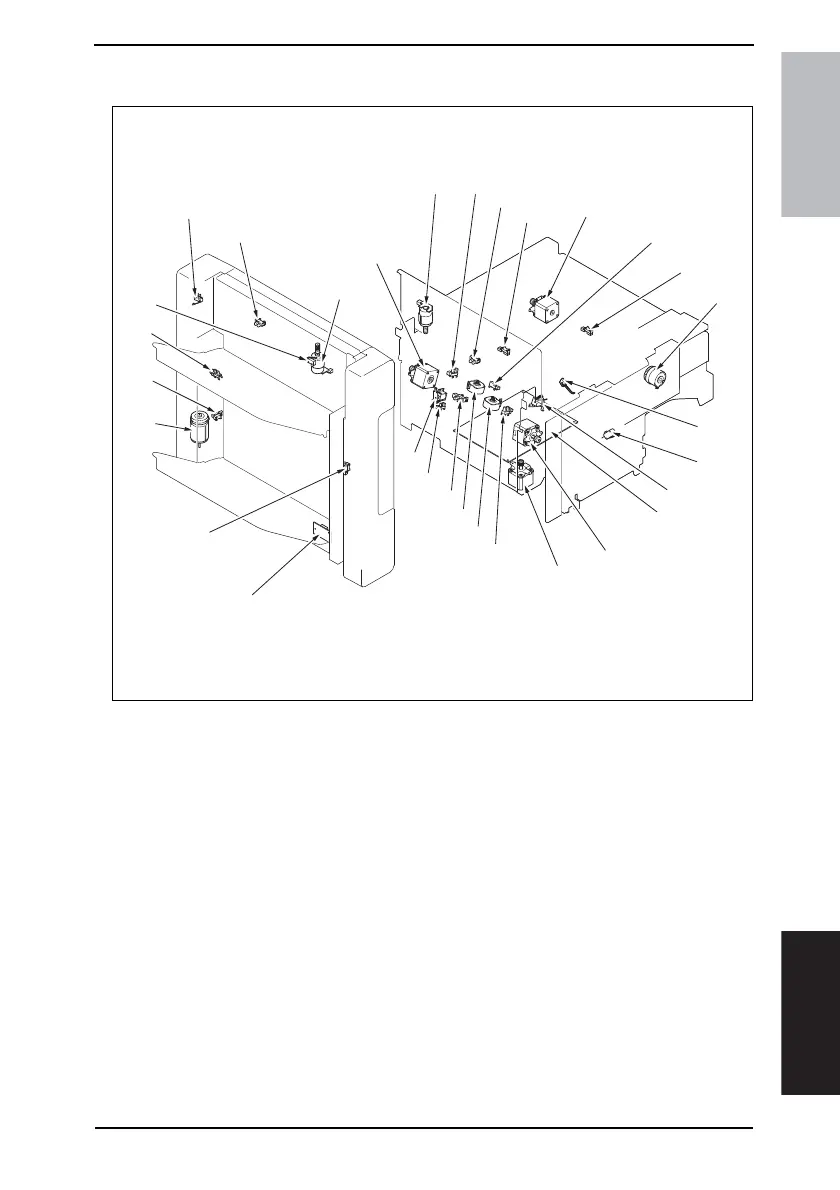

23.8 FS-508 (Option)
[1] Exit Open/Close Motor (M6-FN) [16] Alignment Motor 2 (M5-FN)
[2] Alignment Home Position Sensor 1 (PC6-FN) [17] Alignment Motor 1 (M4-FN)
[3] Exit Roller Home Position Sensor (PC12-FN) [18] Exit Paddle Home Position Sensor (PC11-FN)
[4] Transport Sensor (PC5-FN) [19] Staple Home Position Sensor (PC10-FN)
[5] Entrance Motor (M3-FN) [20] Exit Paddle Solenoid (SL2-FN)
[6] Storage Tray Detecting Sensor (PC8-FN) [21] Elevator Board (PWB-B FN)
[7] Entrance Sensor (PC4-FN) [22]
Elevator Tray Home Position Sensor
(PC3-FN)
[8] Registration Clutch (CL1-FN) [23] Elevator Motor (M11-FN)
[9] Transport Jam Detection Switch (S4-FN) [24] Elevator Tray Lower Limit Sensor (PC14-FN)
[10] Front Cover Detection Switch (S1-FN) [25] Top Face Detection Sensor (PC15-FN)
[11] Storage Paddle Solenoid (SL1-FN) [26] Shutter Detection Switch (S2-FN)
[12] Main Control Board (PWB-A FN) [27]
Elevator Tray Upper/Lower Limit Switch
(S3-FN)
[13] Exit Motor (M1-FN) [28] Shutter Home Position Sensor (PC16-FN)
[14] Stapling Unit Moving Motor (M7-FN) [29] Shutter Opening Motor (M12-FN)
[15] Alignment Home Position Sensor 2 (PC7-FN) [30] Transport Motor (M2-FN)
4040F5C510DA
[1] [2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
