Field Service Ver. 1.0 Aug. 2005 4. Other
9
SD-502Maintenance

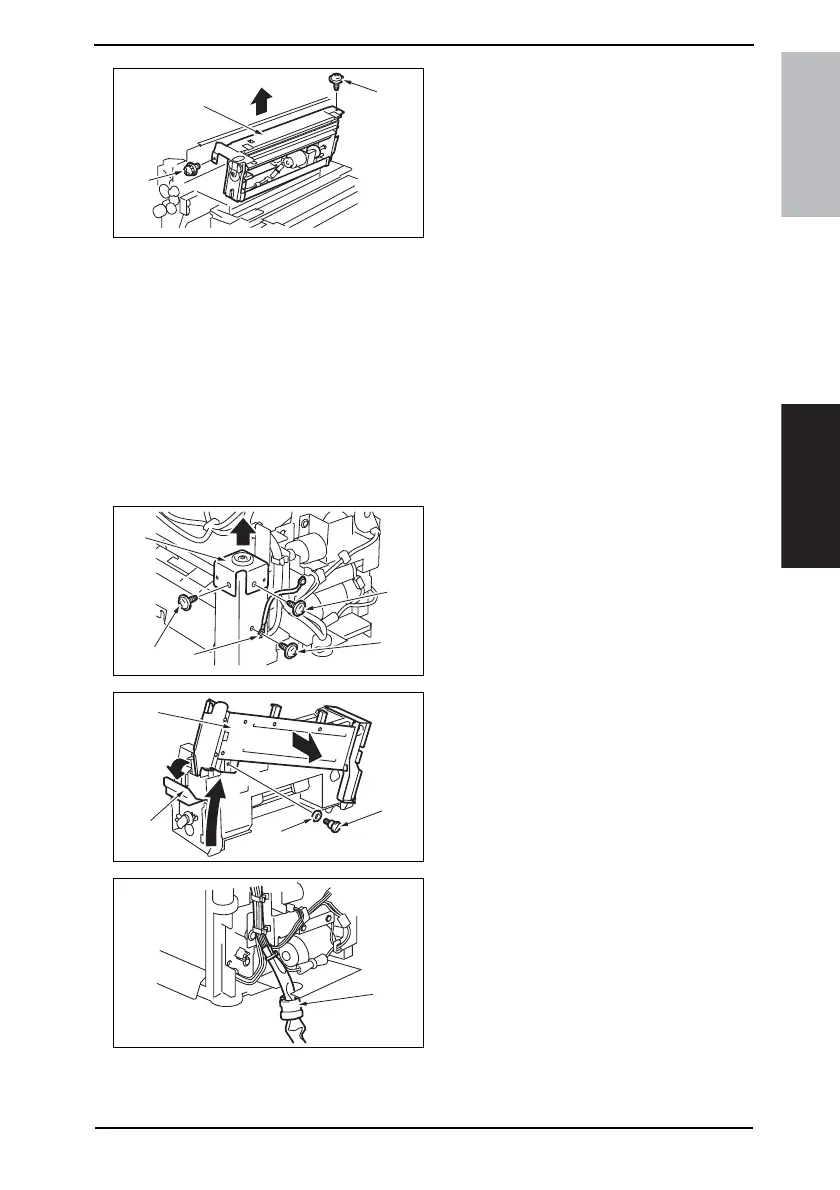

8. Remove two screws [8], and remove
the Crease Unit [9].
4.3.6 Stapler Unit
1. Remove the Saddle Unit.
☞ 7
2. Remove the Paper Output Tray.
☞ 5
3. Remove the Front Cover.
☞ 5
4. Remove the Rear Cover.
☞ 6
5. Remove the Upper Cover.
☞ 6
6. Remove the screw [1], and remove
the ground wire [2].
7. Remove two screws [3], and remove
the holder [4].
8. Release the lock release lever [5],
and slide the Saddle Unit Mounting
Plate [6].
9. Remove the shoulder screw [7] and
the washer [8], and remove the Sad-
dle Unit Mounting Plate [6].
10. Remove the harness clamp [6] from
the Metal Bracket.
4511F2C512DA
[8]
[9]
[8]
4511F2C513DA
[1]
[2]
[3]
[3]
[4]
4511F2C515DA
[7]
[8]
[5]
[6]
4511F2C516DA
[6]
