Field Service Ver. 1.0 Aug. 2005 4. Other
7
SD-502Maintenance

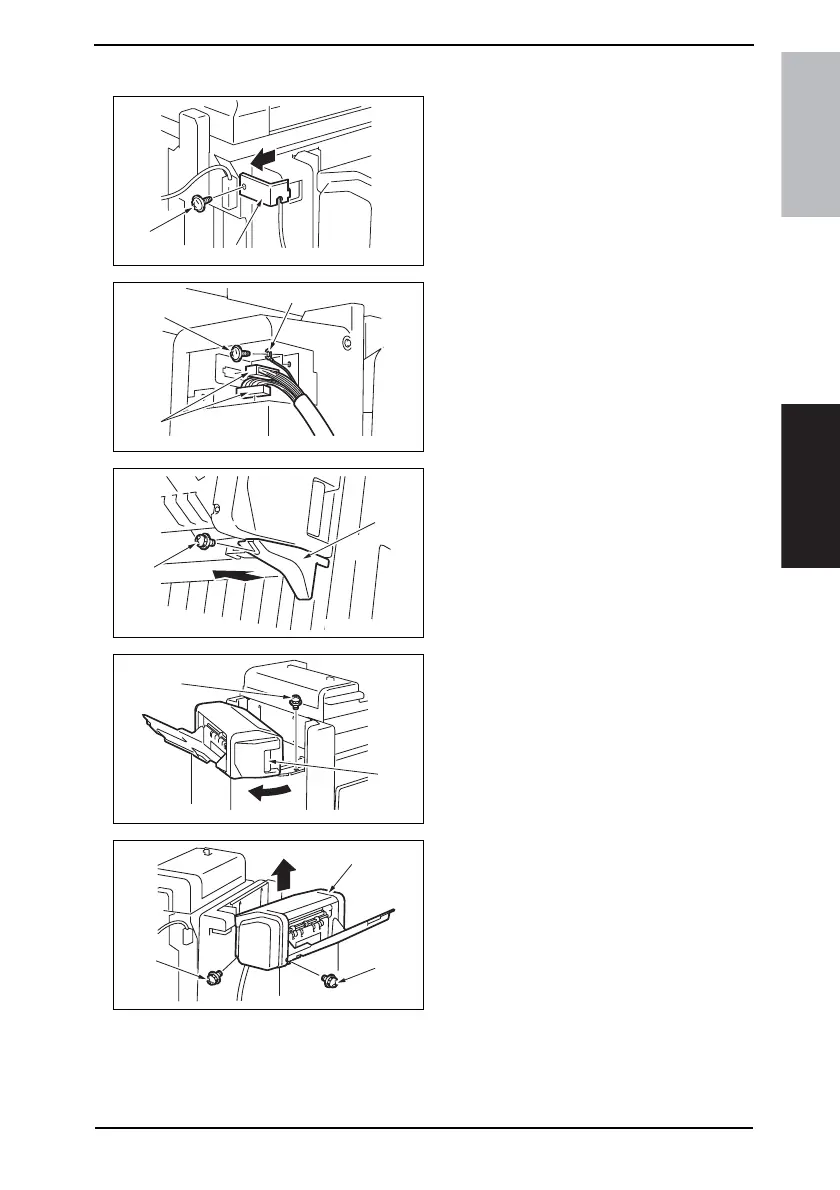

4.3.4 Saddle Unit
1. Remove the screw [1], and remove
the Connector Cover [2].
2. Remove the screw [3], and remove
the ground wire [4].
3. Unplug two connectors [5].
4. Remove the screw [6], and remove
the Lower Front Cover [7].
5. Pull the lock release lever [8], and
open the Saddle Unit.
6. Remove the screw [9].
7. Remove two screws [10], and
remove the Saddle Unit [11].
4511F2C503DA
[1]
[2]
4511F2C504DA
[4]
[5]
[3]
4511F2C505DA
[7]
[6]
4511F2C507DA
[8]
[9]
4511F2C508DA
[10]
[11]
[10]
