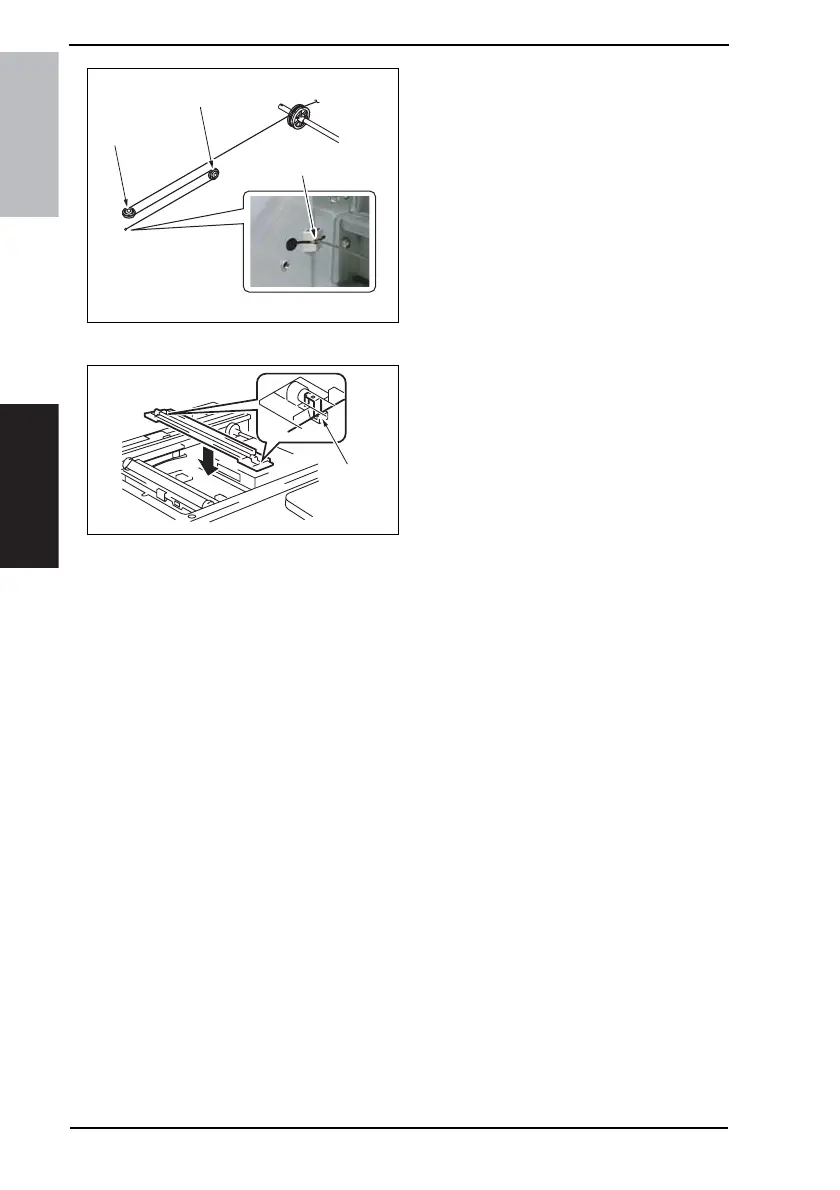

15. Wind Scanner Drive Cable 3 around
pulley H [25] and pulley F [26] and
hook the bead to the side surface
[27] of the Scanner Frame.
16. Remove the pulley tape.
17. Mount the cable to the Exposure Unit
[28].
18. Readjust the position of the Exposure Unit.
☞ 212
4040F2C726DA
[25]
[27]
[26]
4040F2C727DA
[28]
