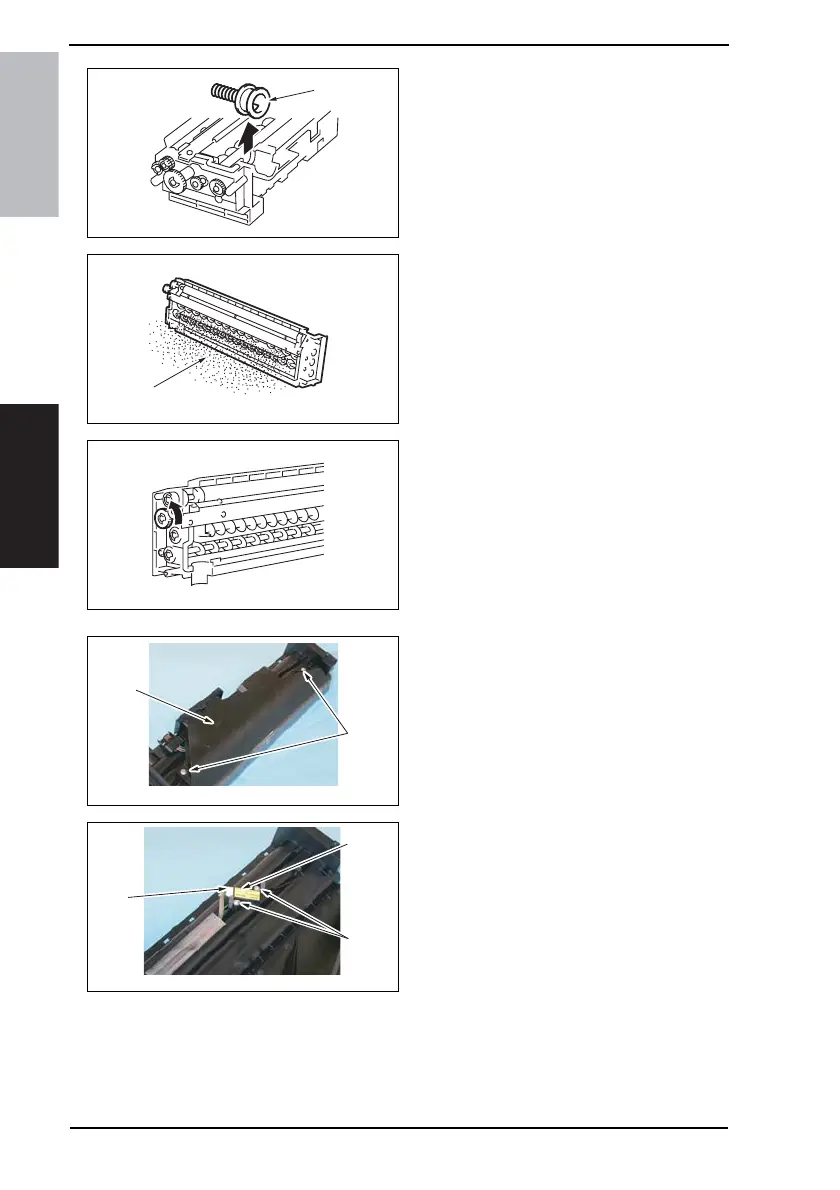

7. Remove the Toner Supply Port [7].
8. Remove the developer [8].
Removal of the Developer
• Dump the developer on the Sleeve
Roller by rotating the gear in the
direction of the arrow.
• If you rotate the gear in reverse,
mylar for cleaning the ATDC Sensor
• Dump developer until almost no
developer sticks to the Sleeve
Roller.
9. Remove two screws [9] and open the
Cover [10].
10. Remove two screws [11], disconnect
the connector [12], and remove the
ATDC Sensor [13].
11. Add developer.
☞ 34
4040F2C580DA
[7]
4040F2C581DA
[8]
4040F2C582DA
4040F2C745DA
[9]
[10]
4040F2C746DA
[11]
[13]
[12]
