18. Jam Display Field Service Ver. 1.0 Aug. 2005
222
bizhub 200/250/350
Troubleshooting

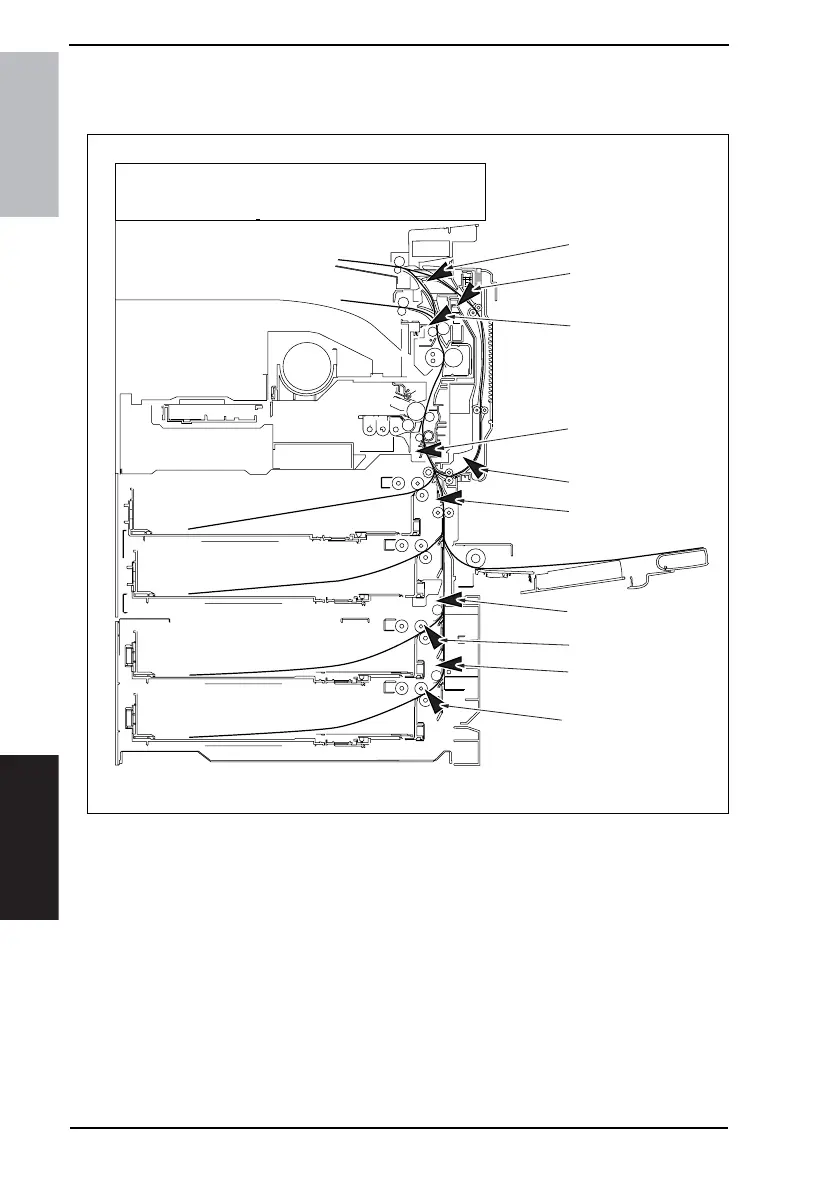

18.2 Sensor layout
18.2.1 System Mounted with PC-102/PC-202
[1] Switch Back Unit Sensor PC26 [6] Vertical Conveyance Sensor PC2
[2] Duplex Unit Upper Transport Sensor PC24 [7] Tray3 Vertical Conveyance Sensor PC117-PF
[3] Paper Exit Sensor PC4 [8] Tray3 Paper Take-Up Sensor PC116-PF
[4] Synchronizing Roller Sensor PC1 [9] Tray4 Vertical Conveyance Sensor PC126-PF
[5] Duplex Unit Lower Transport Sensor PC25 [10] Tray4 Paper Take-Up Sensor PC125-PF
4040F4C501DA
[2]
[1]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
