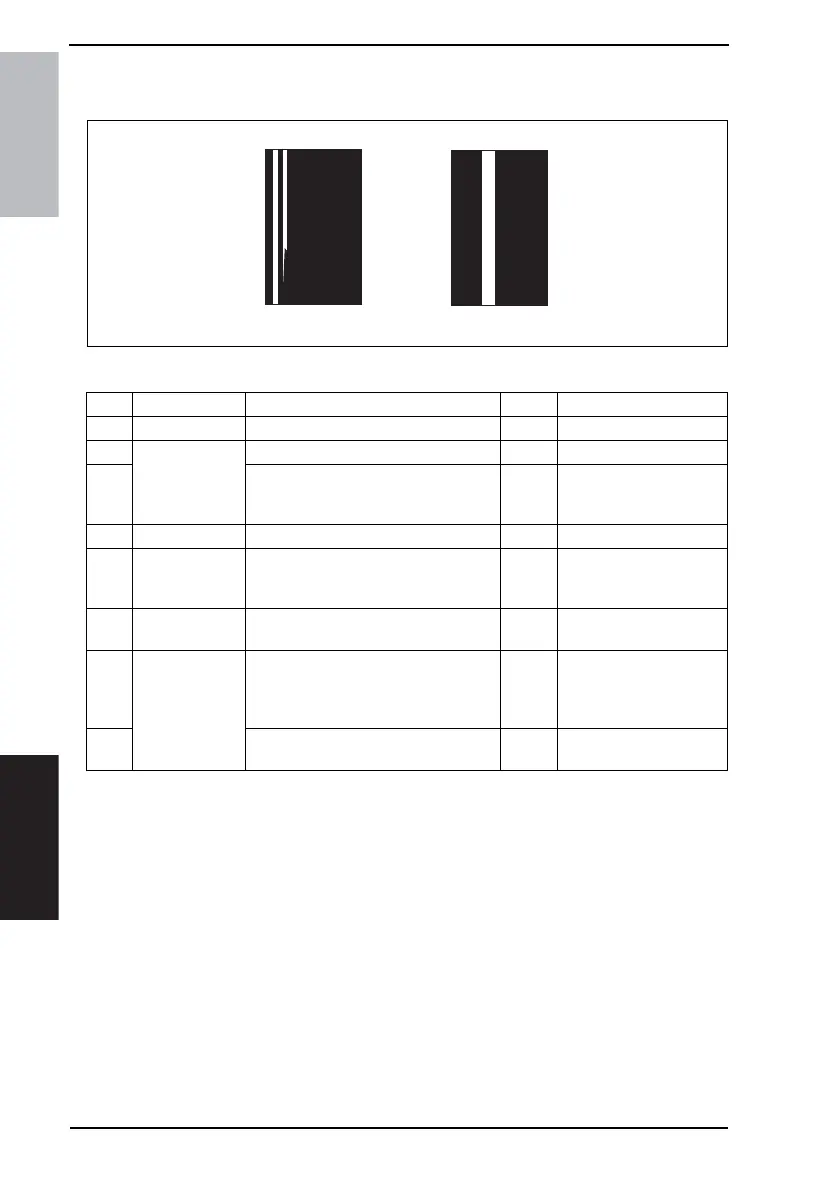

21.3.6 Scanner System: White streaks or bands
A. Typical Faulty Images
B. Troubleshooting Procedure
4036fs4021c0
4036fs4022c0
Step Section Check Item Result Action
1 Original Original is damaged or dirty. YES Change original.
2 Original Cover Original Pad is dirty. YES Clean.
3 Original Cover does not lie flat. YES Replace Original Cover if
it is deformed or the
hinges are broken.
4 Shading Sheet Shading sheet is dirty. YES Clean.
5 Mirrors/Lens/
Original Glass/
Reflectors
Mirrors, lens, Original Glass and/or
reflectors are dirty.
YES Clean.
6 Exposure Lamp Exposure Lamp is dirty. YES Clean.
Change Exposure Lamp.
7 BCRS Board The problem has been eliminated after
performing step 6.
NO Change the Jumper
Switch Setting on the
BCRS Board.
☞ 218
8 The white lines or bands are blurry or
opaque.
YES Change Exposure Unit.
Change CCD Unit.
To Next Page
