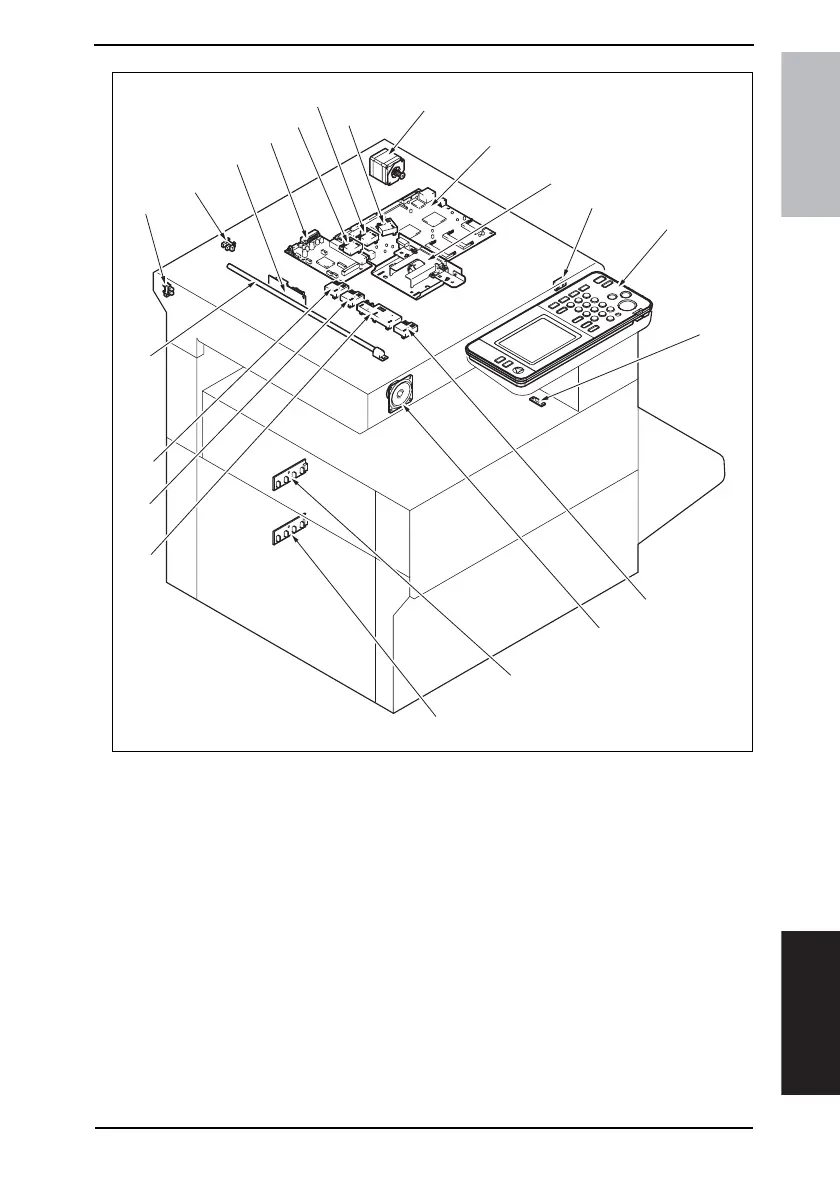

Field Service Ver. 1.0 Aug. 2005 23. Parts layout drawing
275
bizhub 200/250/350Appendix
[1] Scanner Motor (M12) [12] Original Size Sensor 1 (PC201)
[2] MFBS Board (MFBS) [13] Original Size Sensor 7 (PC207)
[3] CCD Board (CCD) [14] Exposure Lamp (LA2)
[4] Size Reset Switch (SW201) [15] Scanner Home Sensor (PC208)
[5] Control Panel (UN1) [16] Original Cover Angle Sensor (PC209)
[6] Pre-Transfer Guide Plate Register (R3) [17] Inverter Board (INV)
[7] Original Size Sensor 3 (PC203) (Option) [18] BCRS Board (BCRS)
[8] Speaker (SP1) [19] Original Size Sensor 4 (PC204)
[9] FD Paper Size Board 1 (PWB-I1) [20] Original Size Sensor 5 (PC205) (Option)
[10] FD Paper Size Board 2 (PWB-I2) [21] Original Size Sensor 6 (PC206) (Option)
[11] Original Size Sensor 2 (PC202)
4040F5C508DA
[5]
[4]
[1]
[18]
[21]
[20]
[19]
[17]
[16]
[15]
[2]
[3]
[6]
[8]
[7]
[9]
[10]
[11]
[12]
[13]
[14]
