Field Service Ver. 1.0 Aug. 2005 3. Other
13
DF-605Maintenance

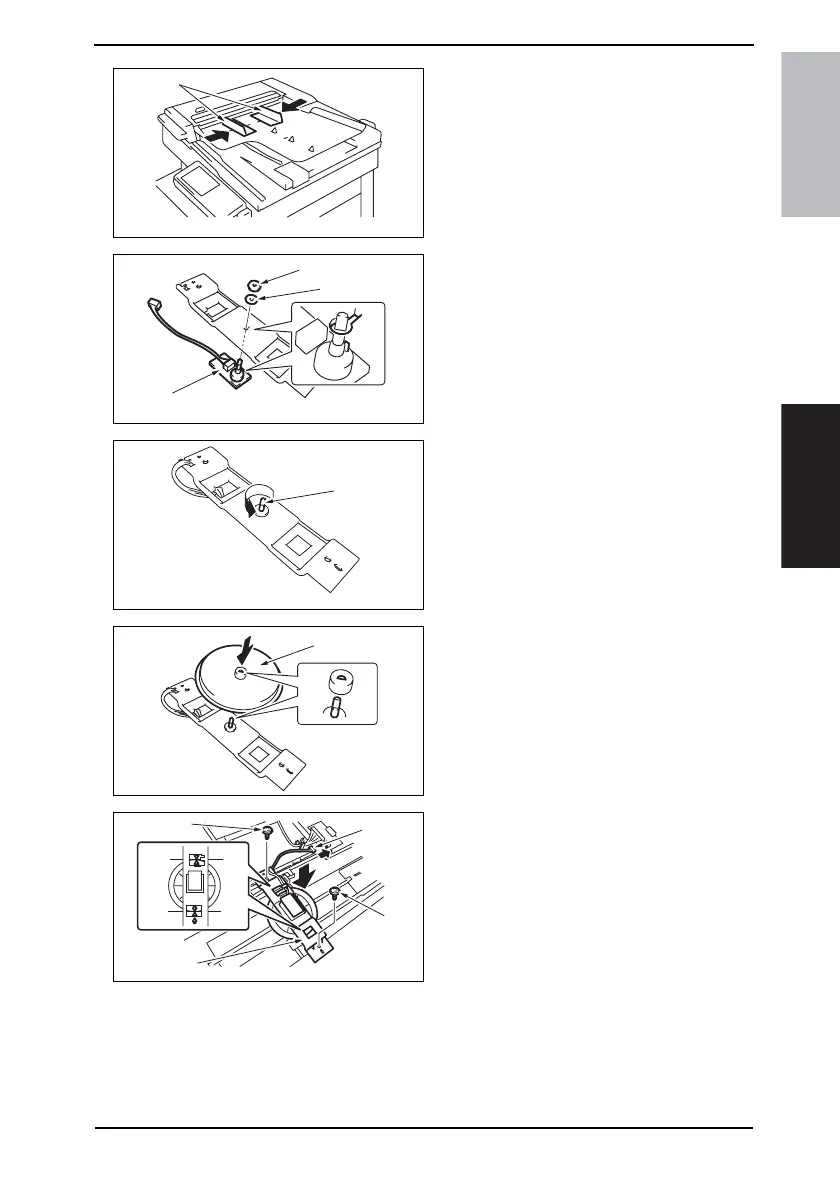

B. Reinstallation Procedure
1. Close the Side Edge Stop [1] of the
Original Feed Tray.
NOTE
• Be sure to perform document width
detection adjustment after replac-
ing the Variable Resistor (PBA-VR).
☞ 26
2. Use the nut [2] and the washer [3] to
install the Variable Resistor [4].
NOTE
• Align the protrusion of the Variable
Resistor and the cutout of the
mounting bracket.
3. Turn the Variable Resistor [5] coun-
terclockwise until it stops.
4. Reinstall the gear [6].
NOTE
• Note the mounting position of the
gear and the Variable Resistor.
5. Connect the connector [7].
6. Use two screws [8] to install the Vari-
able Resistor [9].
NOTE
• Install the gear and rack gear by
aligning the arrows.
7. Install the Original Feed Tray Rear Cover and turn ON the Main Power Switch.
4344F2C525DA
[1]
4344F2C526DA
[2]
[3]
[4]
4344F2C527DA
[5]
4344F2C528DA
[6]
4344F2C529DA
[7]
[8]
[9]
[8]
