PC-102/PC-202Maintenance

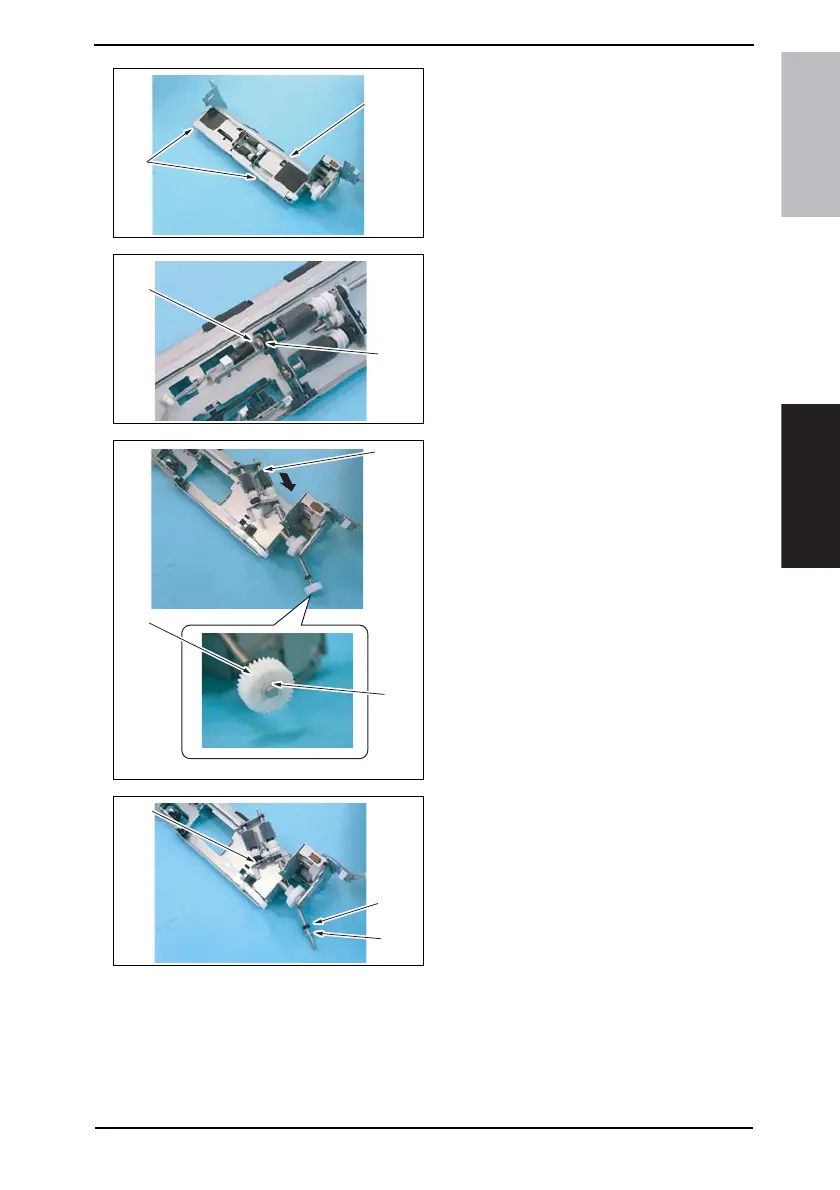

7. Remove two screws [6] and remove
the Paper Take-up Cover [7].
8. Remove the C-ring [8] and remove
the bushing [9].
9. Shift the Shaft Assy [10] in the orien-
tation as shown on the left, and
remove the C-ring [11] and the gear
[12].
10. Remove the C-ring [13], the bushing
[14], and remove the shaft Assy [15].
