Field Service Ver. 1.0 Aug. 2005 2. Periodical check
7
PC-102/PC-202Maintenance

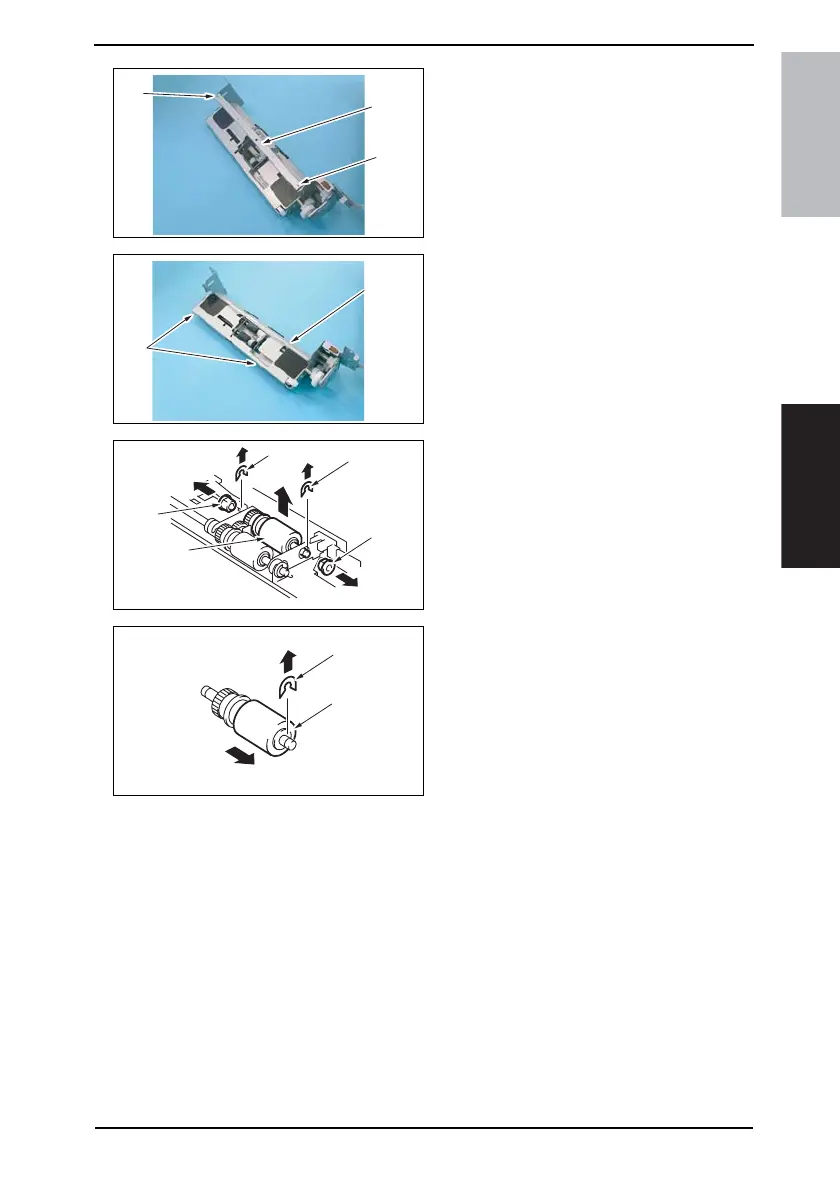

6. Remove two screws [4] and remove
the Paper Separation Roller Mount-
ing Bracket Assy [5] together with
frame.
7. Remove two screws [6] and remove
the Paper Take-up Cover [7].
8. Remove two C-rings [8], two bush-
ings [9], and remove the Pick-up
Roller Assy [10].
9. Remove the C-ring [11] and remove
the Pick-up Roller [12].
10. Repeat steps 1 to 9 similarly for the
4th Drawer.
NOTE
• Replace the Separation Roller Assy, Paper Take-up Roller and Pick-up Roller at the
same time.
4348fs2617c0
[4]
[4]
[5]
4348fs2605c0
[7]
[6]
4348fs2618c0
[8]
[9]
[9]
[10]
[8]
4348fs2619c0
[11]
[12]
To Next Page
