Field Service Ver. 1.0 Aug. 2005 2. Periodical check
5
PC-402Maintenance

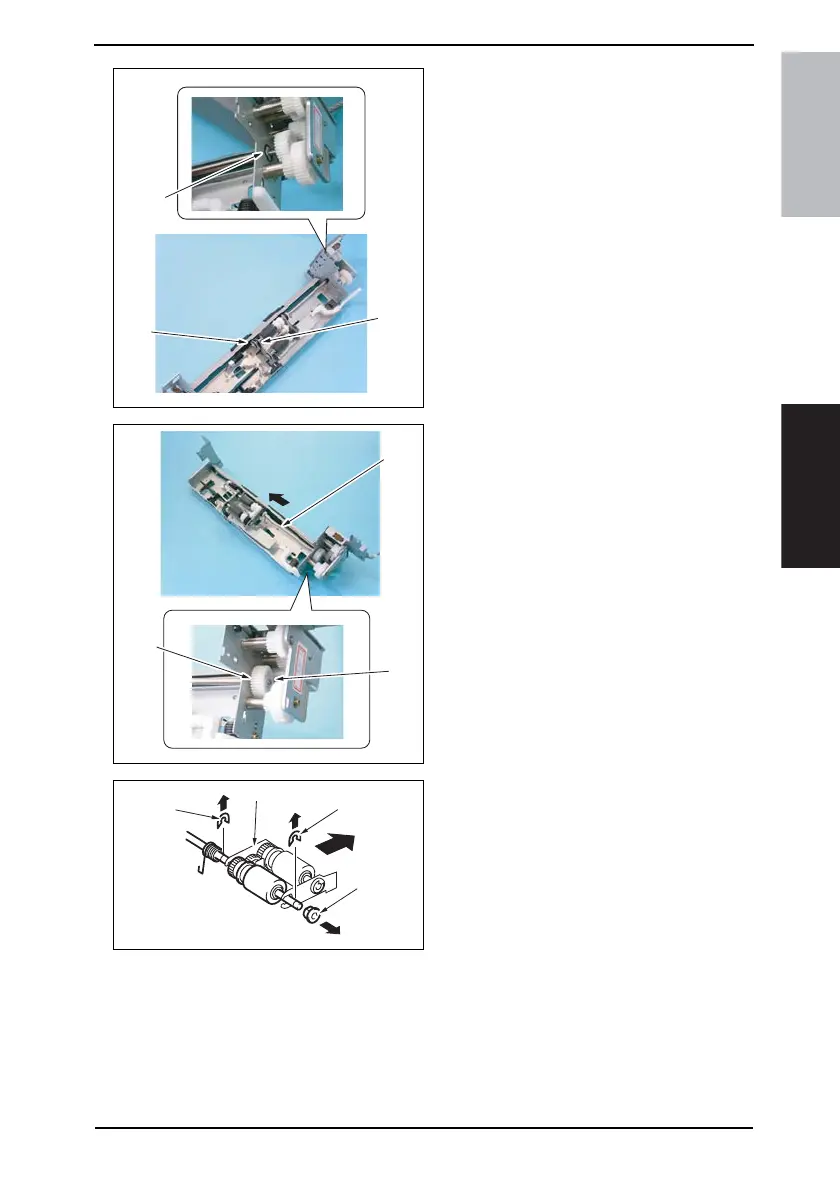

8. Remove two C-rings [8] and remove
the bushing [9].
9. Shift the Shaft Assy [10] in the orien-
tation as shown on the left, and
remove the C-ring [11] and the gear
[12].
10. Remove the shaft Assy [10].
11. Remove two E-rings [13] and the
bushing [14], and remove the Pick-
up Roller Fixing Bracket Assy [15].
4348fs2505c0
[8]
[8]
[9]
4348fs2506c0
[10]
[11]
[12]
4348fs2507c0
[15]
[14]
[13]
[13]
