Field Service Ver. 1.0 Aug. 2005 2. Periodical check
7
PC-402Maintenance

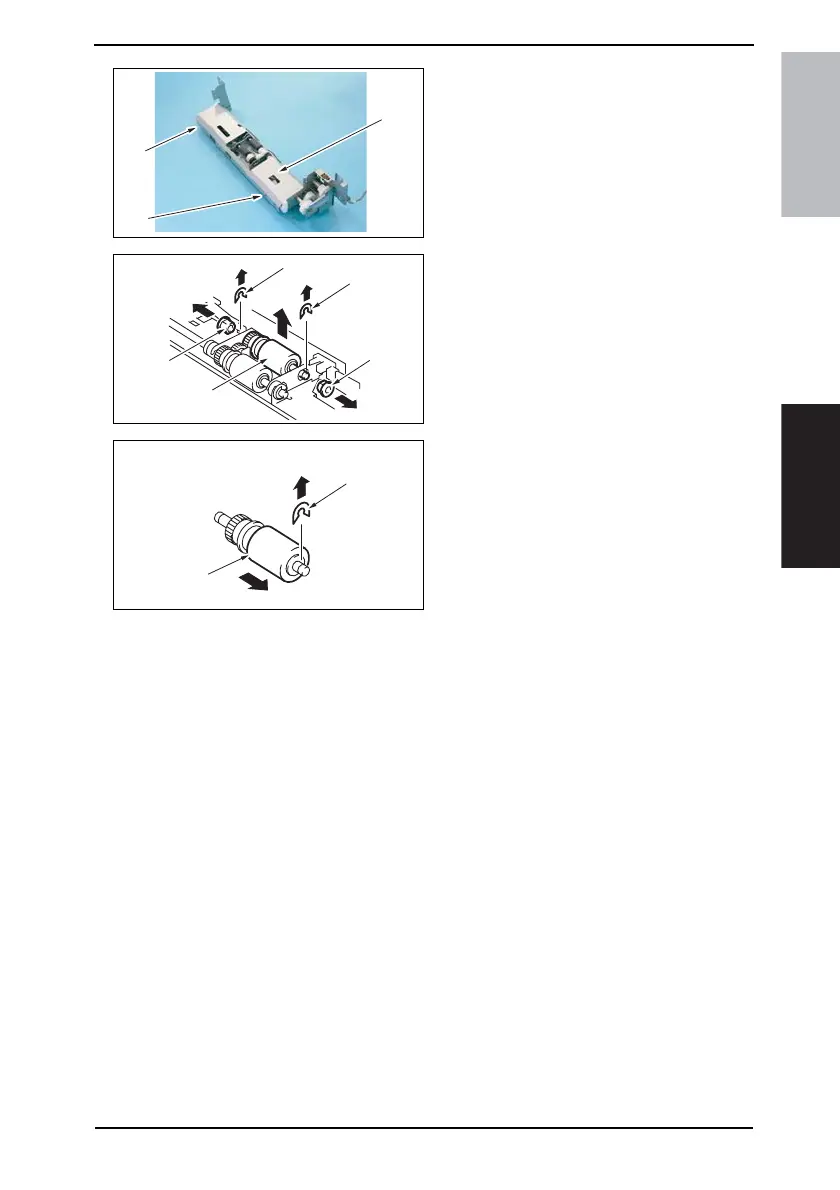

7. Remove two screws [6] and remove
the Paper Take-up Cover [7].
8. Remove two C-rings [8], two bush-
ings [9], and the Pick-up Roller Assy
[10].
9. Remove the C-ring [11] and remove
the Pick-up Roller [12].
NOTE
• Replace the Separation Roller Assy, Paper Take-up Roller and Pick-up Roller at the
same time.
4348fs2515c0
[6]
[6]
[7]
4348fs2517c0
[8]
[8]
[9]
[9]
[10]
4348fs2518c0
[11]
[12]
To Next Page
