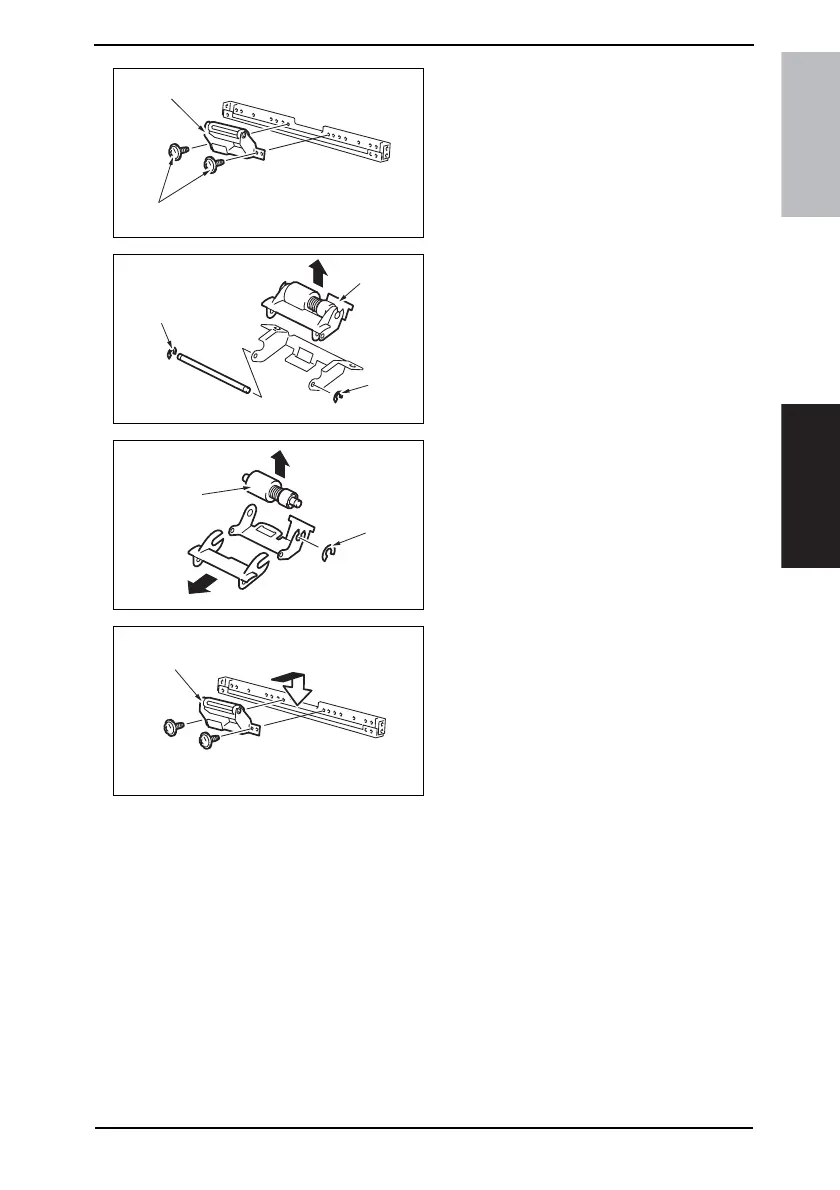

9. Remove two Screws [14] and the
Tray 2 Separation Roller installation
plate Assy [15].
10. Remove two C-clips [16] and the
Tray 2 Separation Roller installation
plate [17].
11. Remove the C-clip [18] and the Tray
2 Separation Roller Assy [19].
12. To reinstall, reverse the order of
removal.
13. Select [Tech. Rep. Mode] →
[Counter] → [Special Parts Counter]
→ [Tray 2] and clear the counter.
NOTE
• Install the Tray 2 Separation Roller
Mounting Bracket Assy [20] while
pressing the holder up so that it
coheres to the metal bracket of the
copier.
4040F2C536DA
[14]
[15]
4040F2C537DA
[16]
[16]
[17]
4040F2C538DA
[18]
[19]
4040F2C539DA
[20]
