FS-508/PU-501/OT-601
Maintenance

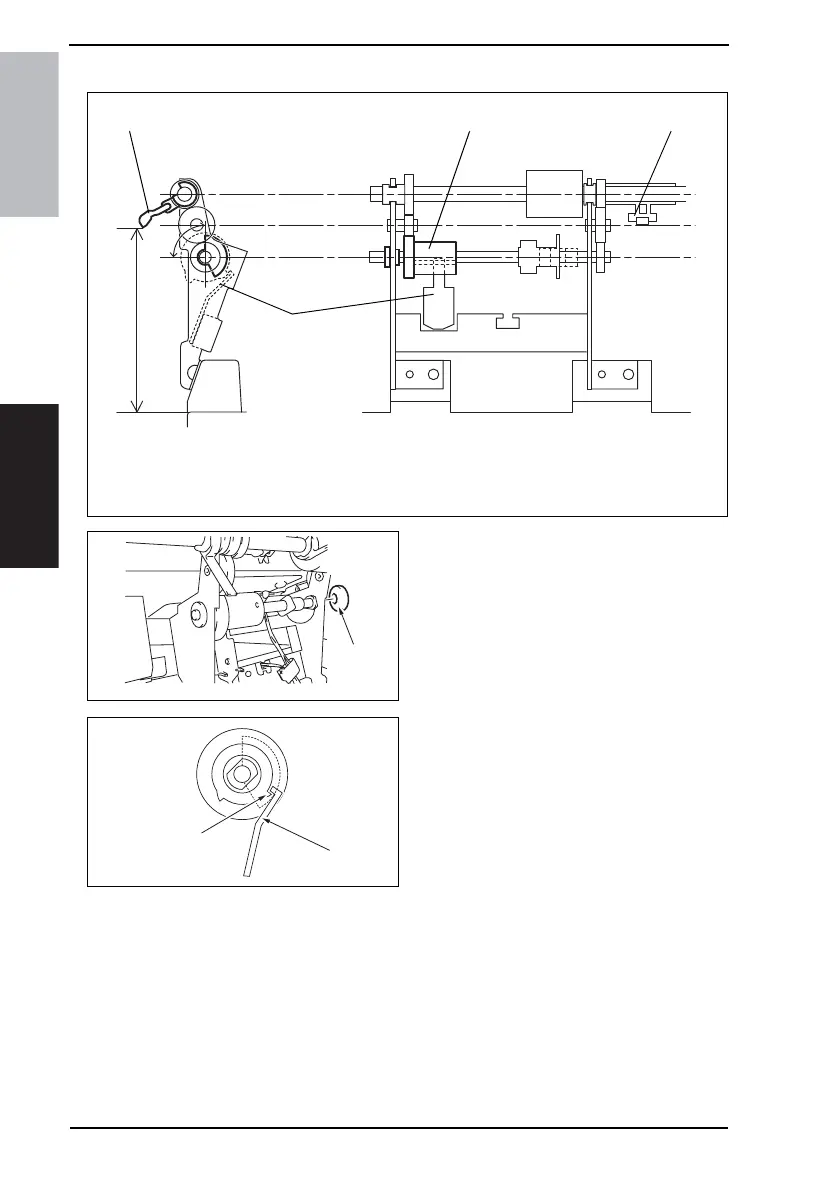

Precaution for Exit Paddle Drive Clutch Reinstallation
2. Install the gear [2].
3. Hook the Solenoid Flapper [4] to the
tab [3] of the Exit Paddle Drive
Clutch Assy.
NOTE
• Install the Exit Paddle Drive Clutch
Assy with the side having a wider
spacing between the tabs facing
upward.
4349F2C529DA
107 mm ± 3 mm
90°
Exit Paddle Drive Clutch Assy
Solenoid flapper
Exit paddle Exit paddle
4349F2C530DA
[2]
4349F2C531DA
[4]
[3]
