21. MIDI 387
21.3 MIDI Note and CC Output
To configure the console for MIDI Note and Control Change message output:
1. Connect the input end of a third party MIDI device to the "MIDI Out" port on the back of
the console. If you are using an external USB MIDI device such as a USB MIDI Widget
then connect the external USB MIDI device to one of the USB ports on your console.
Please note that only generic "USB MIDI Class" devices are supported. Any USB MIDI
devices that require proprietary drivers may work with Hog 4 PC as long as the specific
driver is installed on the Windows machine but these types of USB devices that require
specific drivers will not work with Hog 4 OS consoles.
2. Open the Network window. [Setup → Network]
3. Select a console from the list of devices in the network window and then press the
Settin gs button.

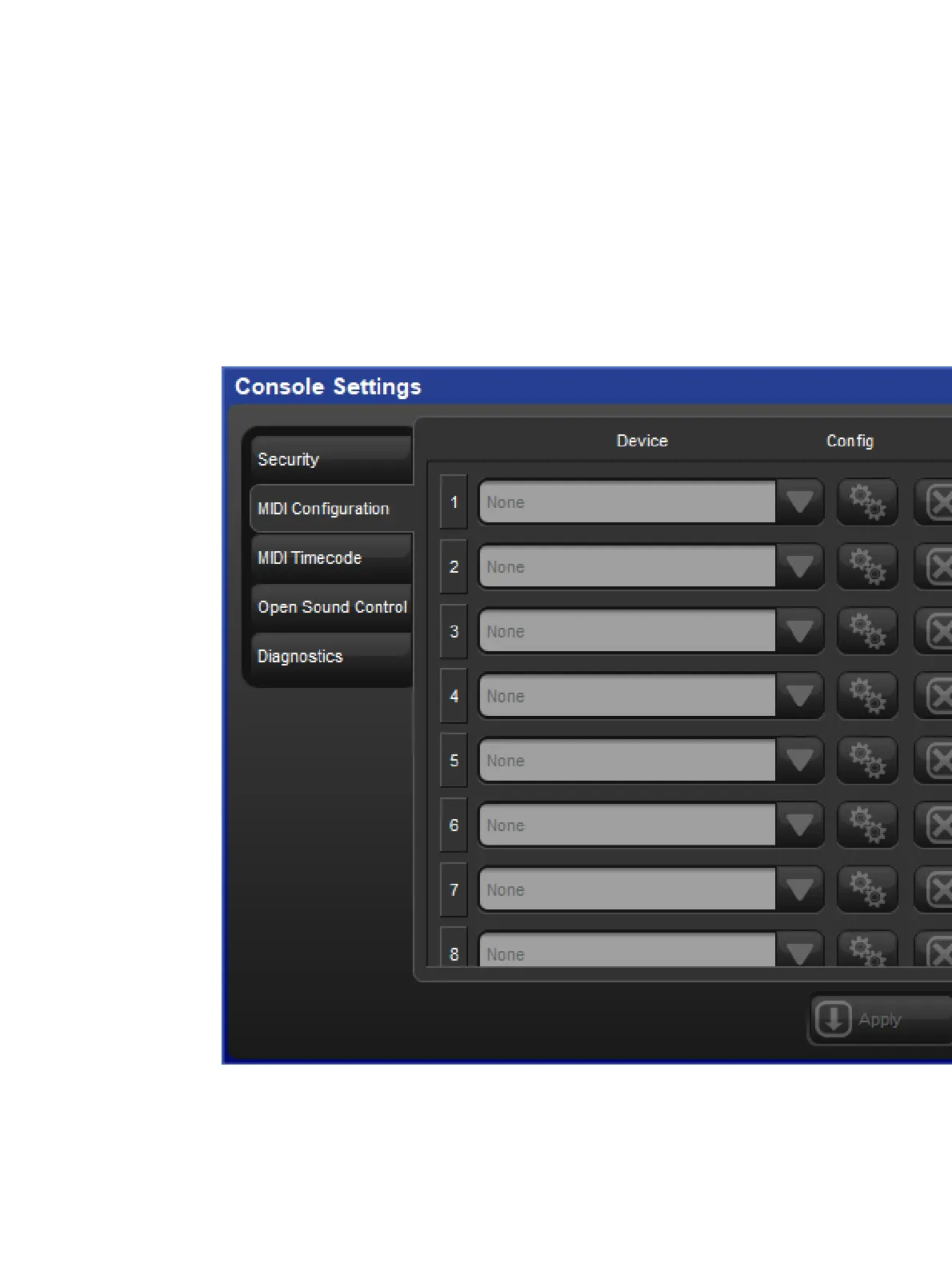

4. Select the MIDI Config ura tion tab of the Console Settings Window.
