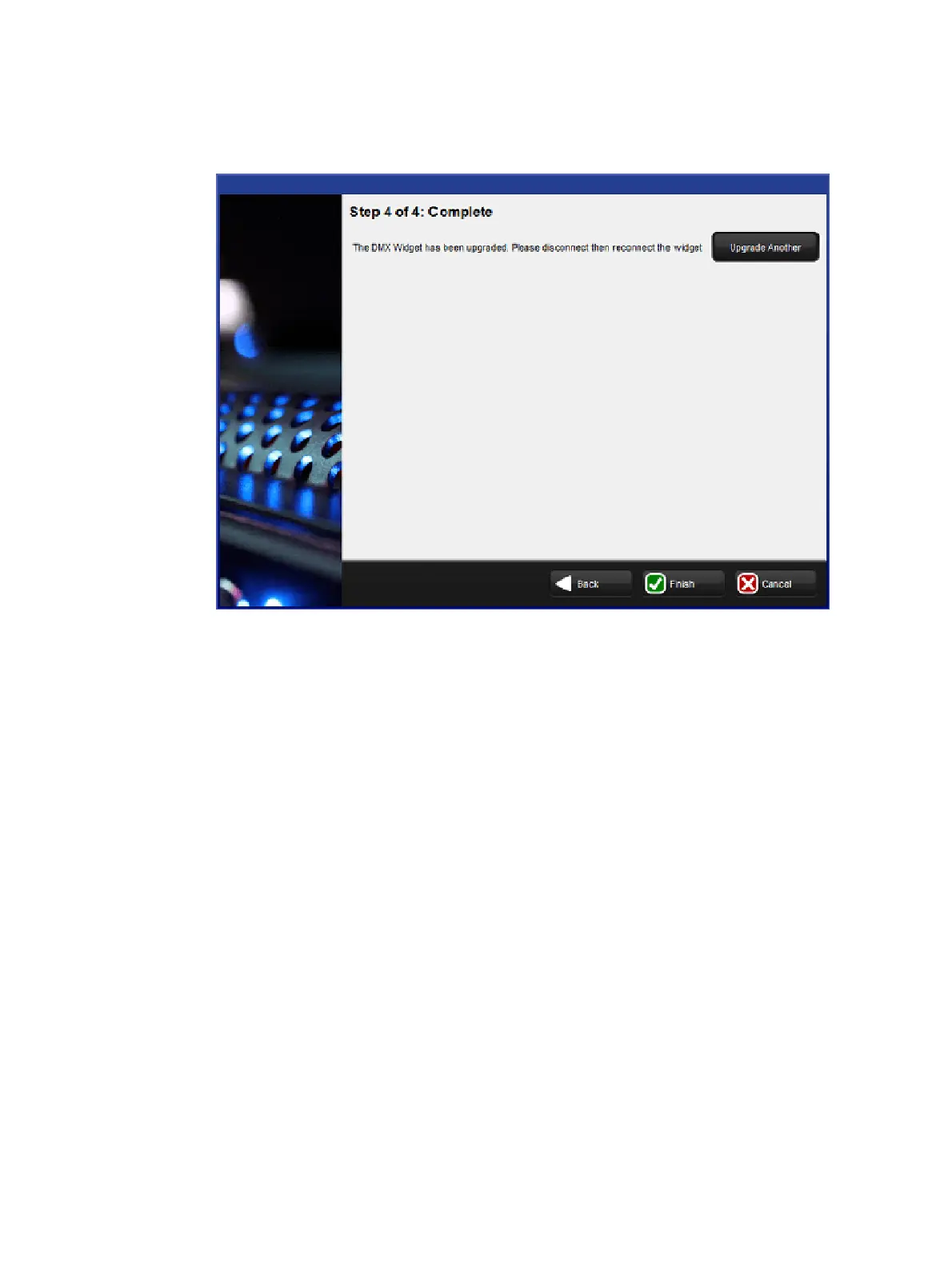

6. Once complete, the widget will be fully upgraded. You can now select Upgrade

Anoth er to upgrade another widget, or press Finish to exit the application. In the

event of an error, a message will be displayed. Please contact Technical Services for

further assistance.
