70 Hog 4 Operations Manual

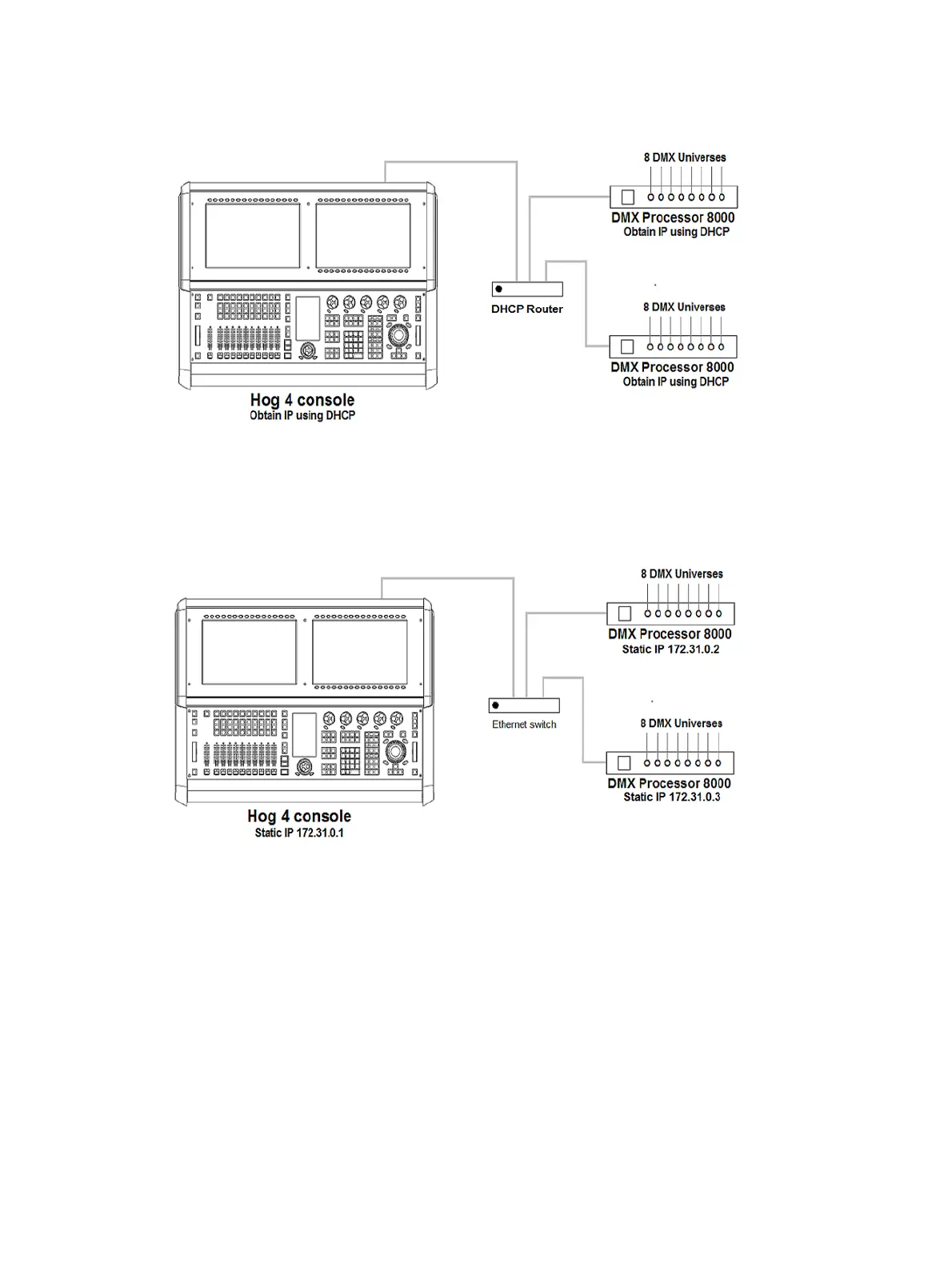

Example C: A DHCP Router serves all components.

Example D: All components have a custom unique static IP address.
