178 Upgrade and Maintenance Manual RX4770 M1
Expansion cards and backup units
RAID controller D3116

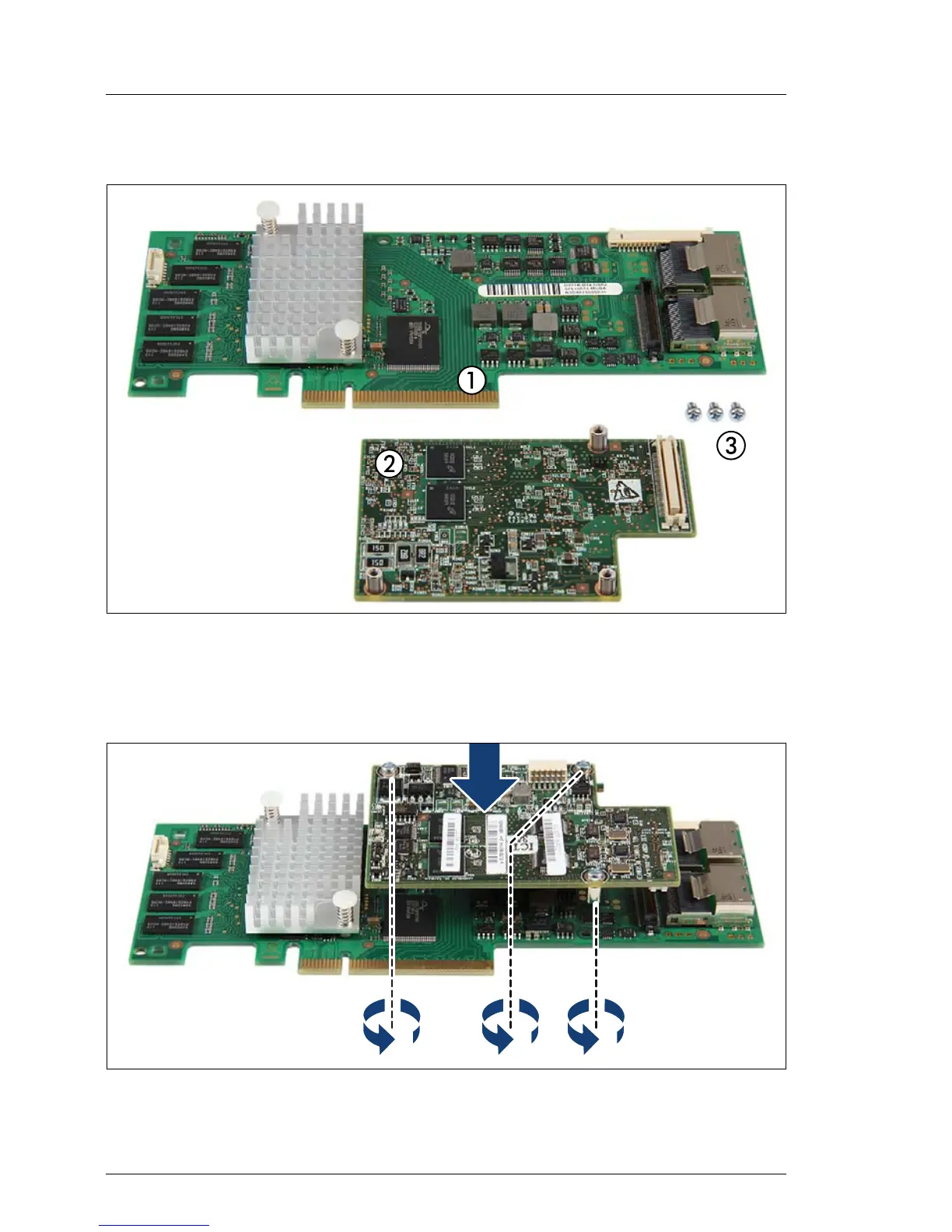

Figure 73: SAS riser and TFM kit
1 SAS riser D3116
2-3 TFM kit including three pre-assembled spacer bolts and three screws
Figure 74: Mounting the TFM kit (A)
Ê Fit the spacer bolts of the TFM on SAS RAID controller.
