5.2 Setting Basic Settings of Measurement
159
5
Chapter 5 ANALYZER Function (IM3533-01)
Open circuit voltage (V) mode (p. 54)
Constant voltage (CV) mode (p. 54)
Constant current (CC) mode (p. 55)

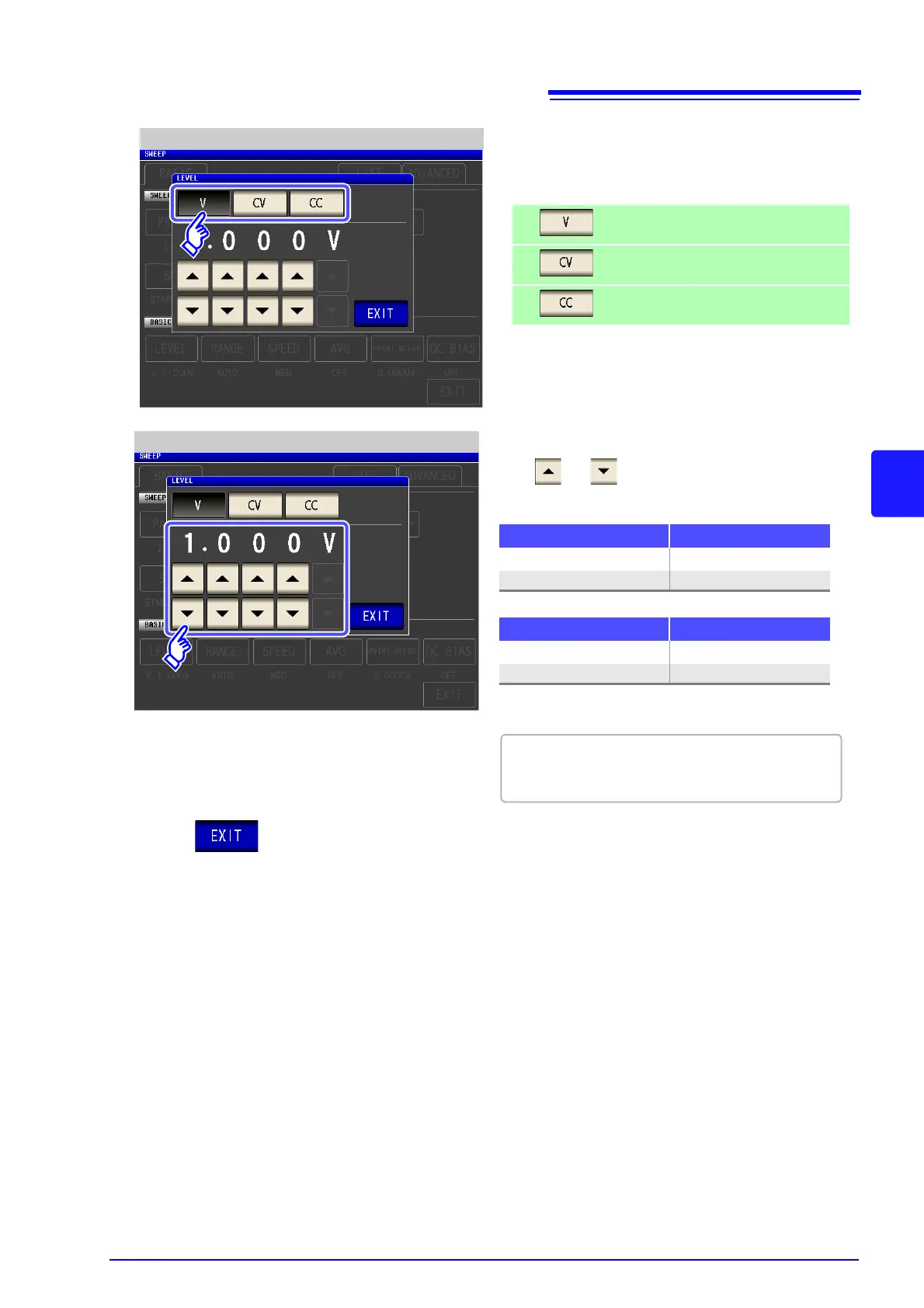

Select the measurement signal level.
3
Measurement Signal Mode Settings
4
Use or to enter the voltage or current
value.
Measurement Signal Level Setting
See
"For setting range and accuracy" (p. 54)
Normal measurement mode
Measurement signal mode Settable range
V, CV 0.005 V to 5.000 V
CC 0.01 mA to 50.00 mA
Low Z high accuracy mode
Measurement signal mode Settable range
V, CV 0.005 V to 2.500 V
CC 0.01 mA to 100.00 mA
The accuracy of testing varies according to the test
signal level.
See
"14.2 Measurement Range and Accuracy" (p. 342)
5
Press to close the setting screen.
To Next Page
