4.2 Setting Basic Settings of Measurement Conditions
69
4
Chapter 4 LCR Function
When the judgment synchronization setting is enabled and you want to set the optimal range relative to the
comparator or BIN measurement judgment standards, it is necessary to re-set the range with . When
performing comparator or BIN measurement of a sample whose impedance varies greatly with the frequency,
you can fix the measurement range to the optimal range relative to the judgment standards.
Judgment synchronization setting
• This setting is only available when the judgment standards have been set for comparator
and BIN measurement (p. 100).
• When judgment standards have been set for comparator and BIN measurement with this
setting on, the range will be automatically switched to the optimal range. However, AUTO
range operation will be used when no judgment standards have been set.

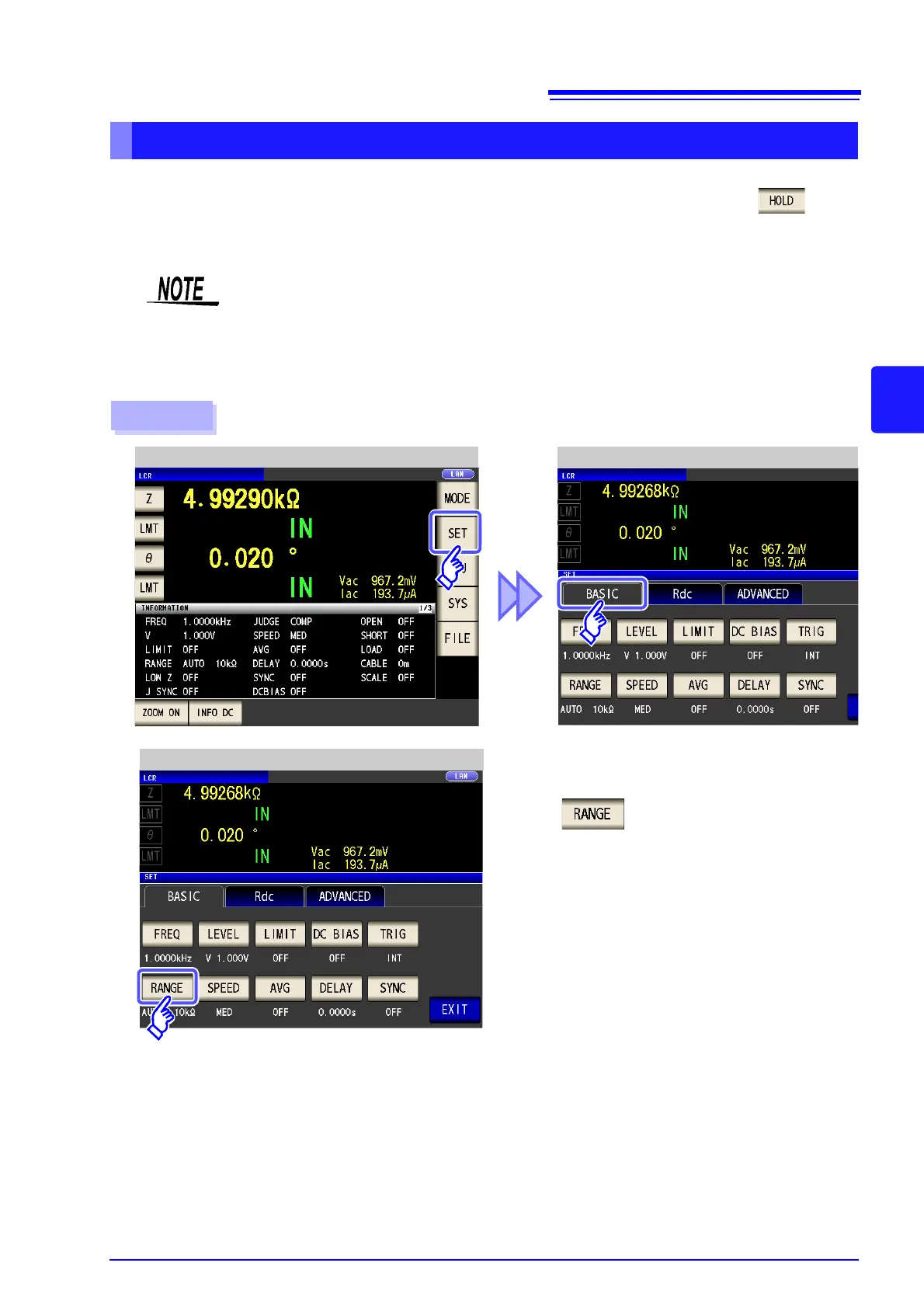

Procedure
LCR Measurement Screen
1
LCR Basic Settings
Example: Comparator
Press .
2
LCR Basic Settings
To Next Page
