HP 830 Series User Manual

327

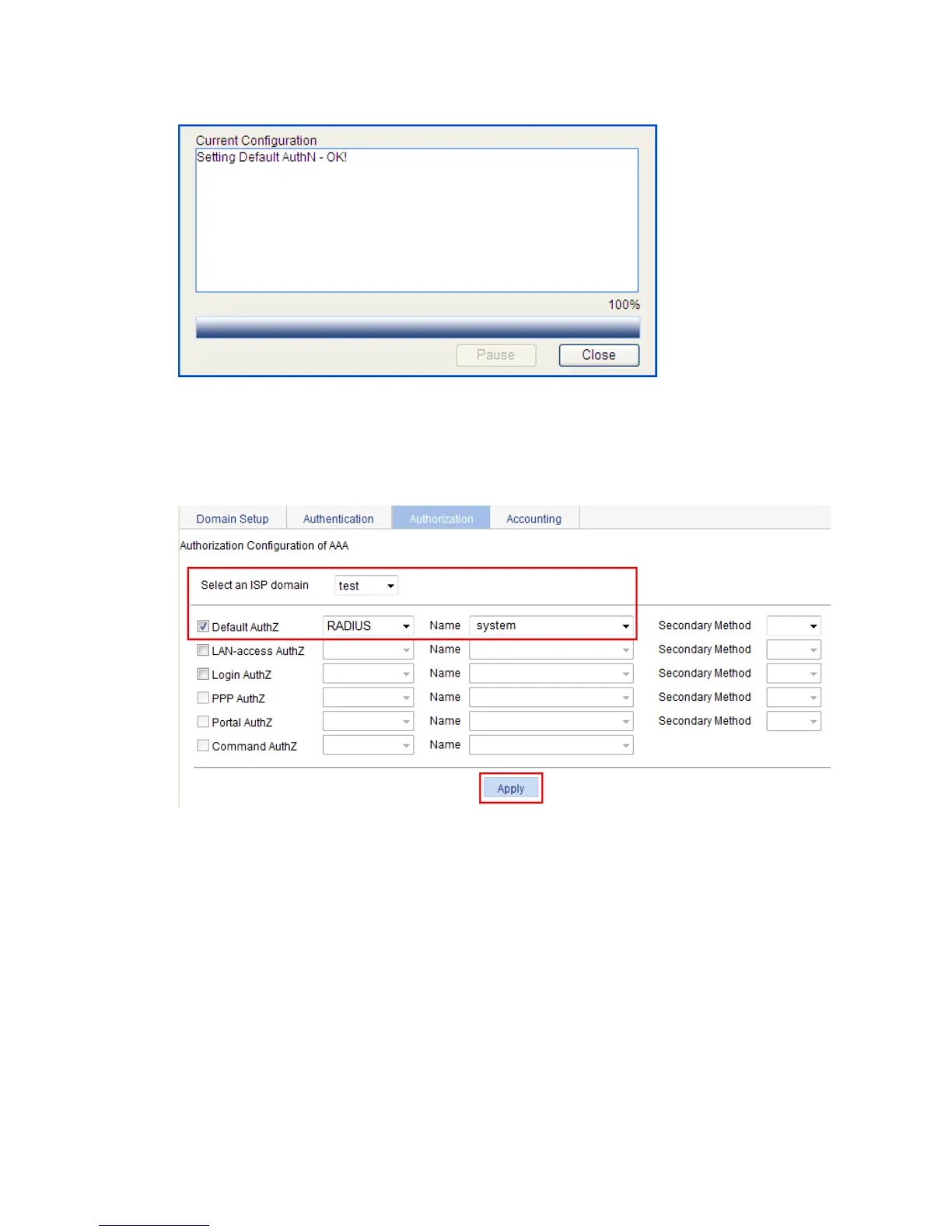

Figure 323 Configuration progress dialog box
7. Click the Authorization tab.
8. Select the ISP domain test, the Default AuthZ box, authorization method RADIUS, and
authorization scheme system from the Name list.
Figure 324 Configuring the AAA authorization method for the ISP domain
9. Click Apply.
A configuration progress dialog box appears.
10. After the configuration process is complete, click Close.
11. Click the Accounting tab.
12. Select the domain name test, the Accounting Optional box, Enable from the Accounting Optional
list, Default Accounting box, accounting method RADIUS, and accounting scheme system from the
Name list.
