328

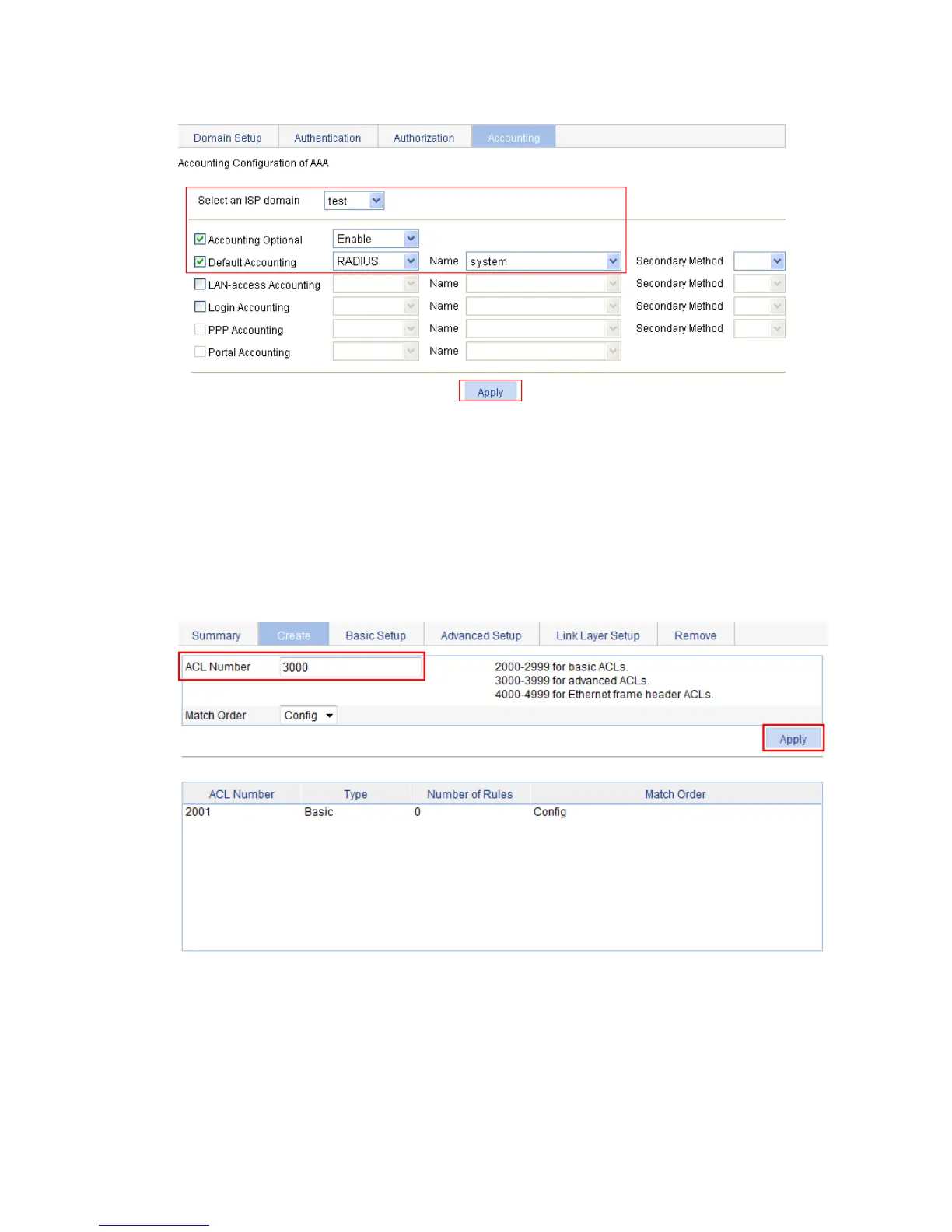

Figure 325 Configuring the AAA accounting method for the ISP domain
13. Click Apply.
A configuration progress dialog box appears.
14. After the configuration process is complete, click Close.
Configuring an ACL
1. From the navigation tree, select QoS > ACL IPv4.
2. Click the Create tab, enter the ACL number 3000, and click Apply.
Figure 326 Creating ACL 3000
3. Click the Advanced Setup tab to configure an ACL rule:
a. Select 3000 from the ACL list.
b. Select the Rule ID box, enter the rule ID 0, and select the action Deny.
c. In the IP Address Filter area, select the Destination IP Address box, enter 10.0.0.1 in the field,
and enter 0.0.0.0 in the Destination Wildcard field.
d. Click Add.
