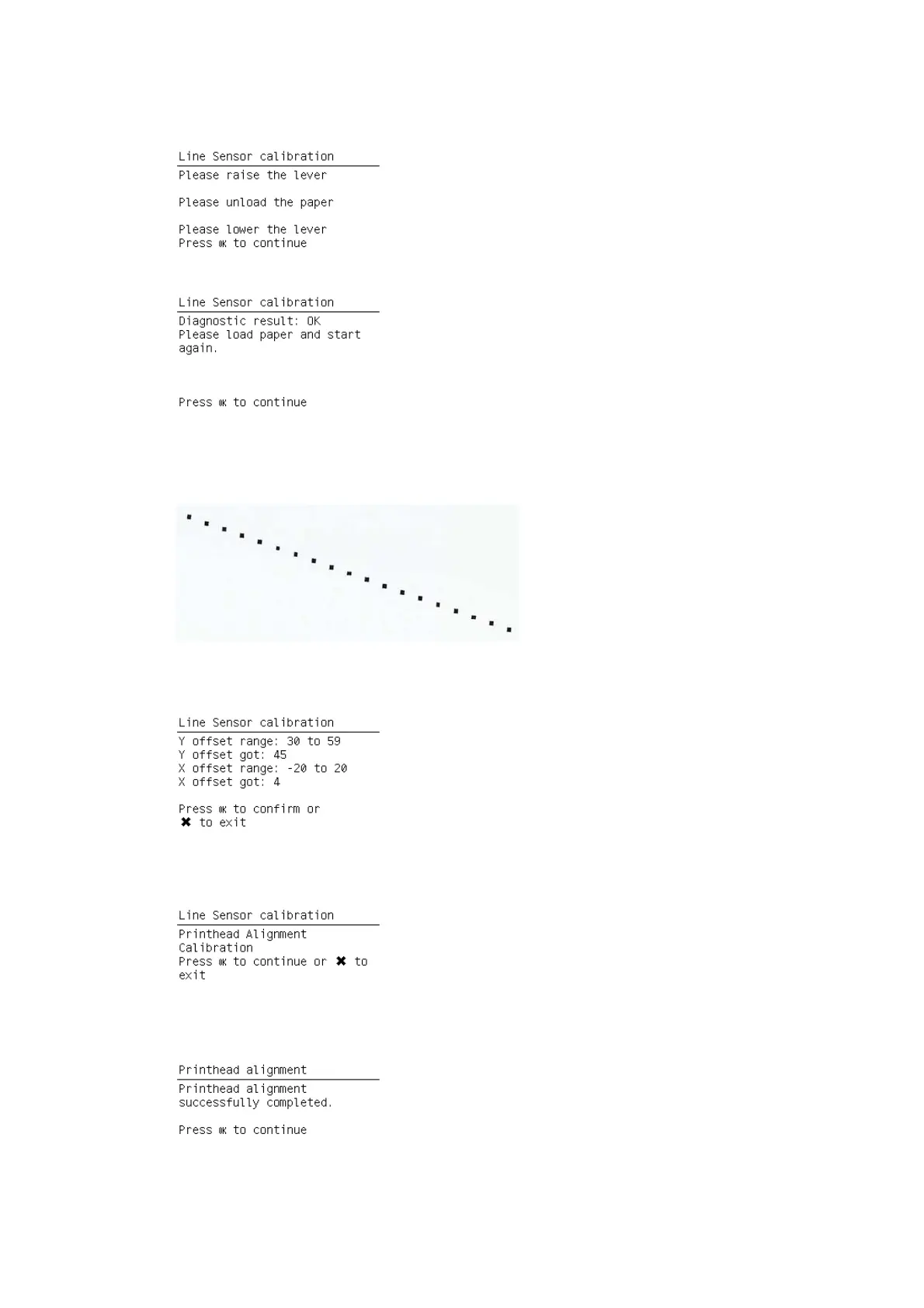

6. If you loaded the paper manually, you must now unload it and then reload it in the normal way, before
the calibration can continue. In this case, the following message is displayed.
When you have unloaded the paper, the front panel prompts you to load it in the normal way.
Load the paper, then press OK.
7. The printer starts to calibrate the Line Sensor position to the black printhead. It prints a line of black
dots and then scans them:
8. When the Line Sensor has been calibrated, the results are displayed on the front panel. Press OK to
finish the calibration or Cancel to exit.
9. The printer now aligns the printheads. When the following message appears, press OK to continue or
Cancel to exit.
10. When the printhead alignment is completed, the following message is be displayed. Press OK to
continue.
If the printhead alignment fails for any reason, a warning message will appear on the front panel. In this
case, try the following.
122 Chapter 6 Service calibrations ENWW
