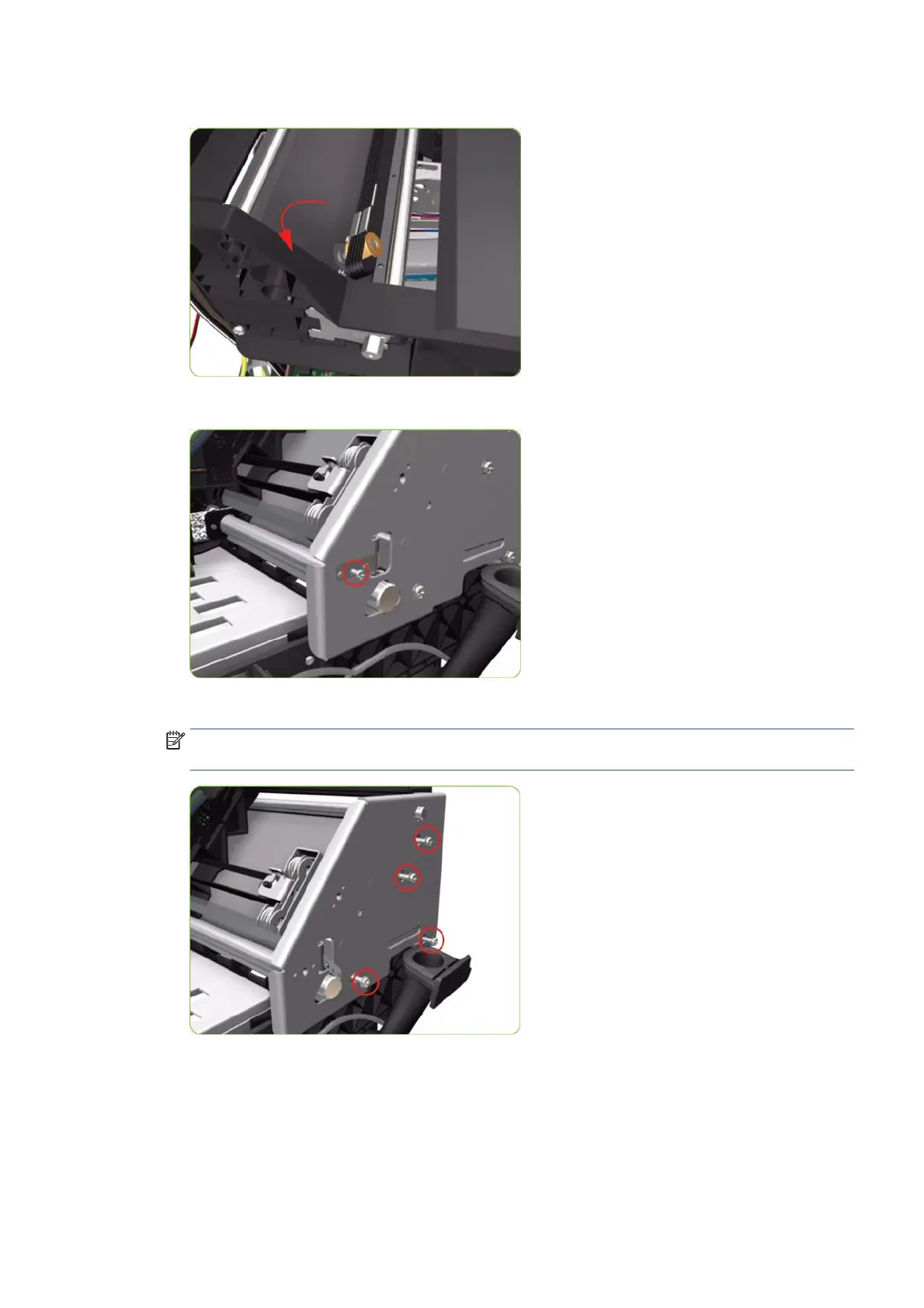

18. Release the Carriage Belt from the Scan-Axis Motor on the left-hand side of the printer.
19. Remove one T-10 screw (Type C) that secure the Encoder Strip.
20. Remove four T-20 screws (Type N) that secure the right Scan-Axis Bracket.
NOTE: Note that these are Chassis screws and in normal circumstances should NEVER be removed,
but in this case we need to remove them in order to remove the Carriage.
ENWW Disassembly order 275
