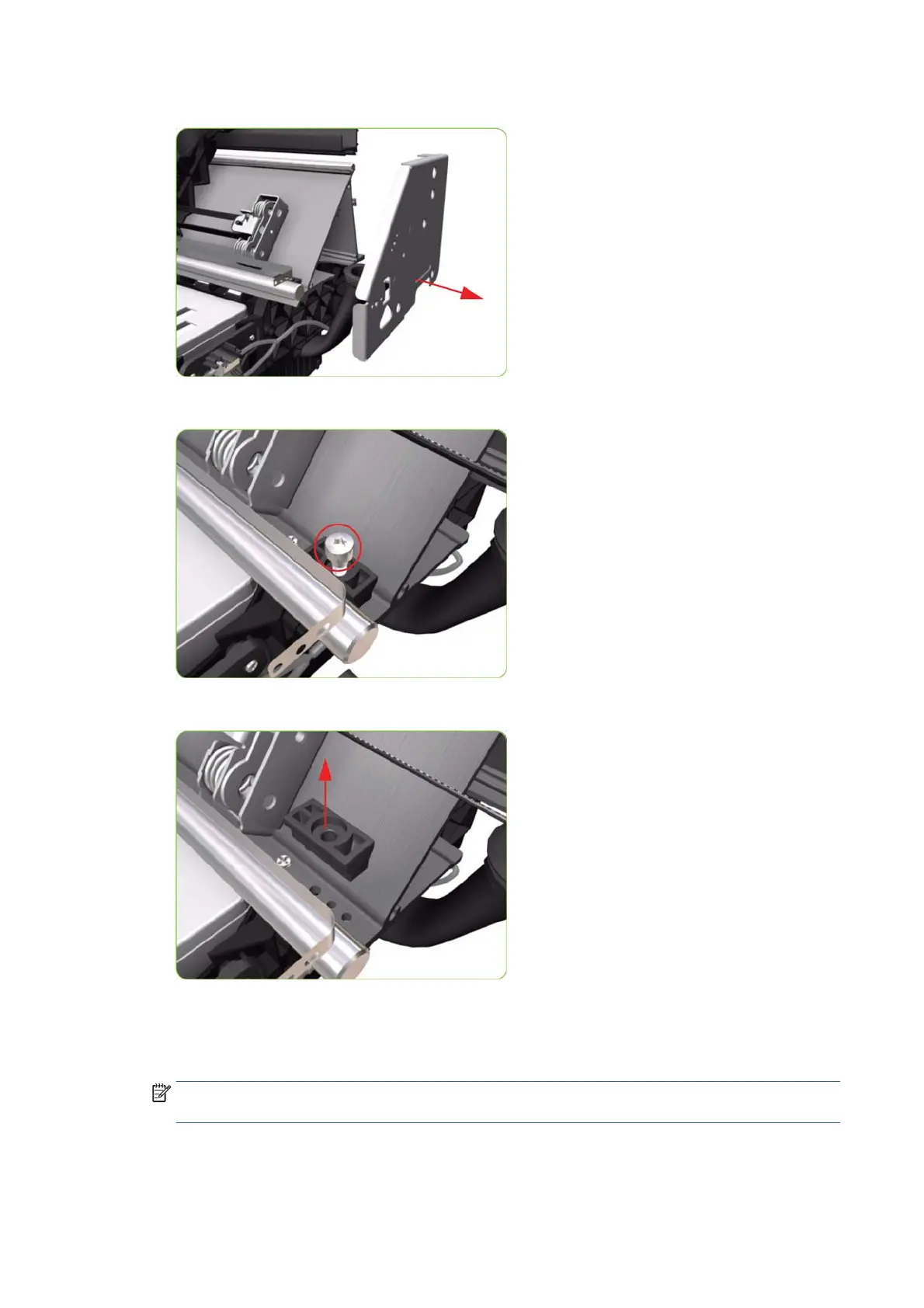

21. Remove the right Scan-Axis Bracket from the printer.
22. Remove the Carriage Stopper Screw (T-20) from the Chassis.
23. Remove the Carriage Stopper from the printer.
24. Slide the Carriage (including the belt) to the right and out of the printer.
25. If the Carriage is to be replaced, make sure that you remove the Belt, the Carriage PCA, Encoder and Line
Sensors and the Cutter (in order to install them on the new Carriage).
NOTE: After installing the new Carriage, make sure you perform the following Service Utility and
Calibrations:
276 Chapter 9 Printer part removal and installation ENWW
