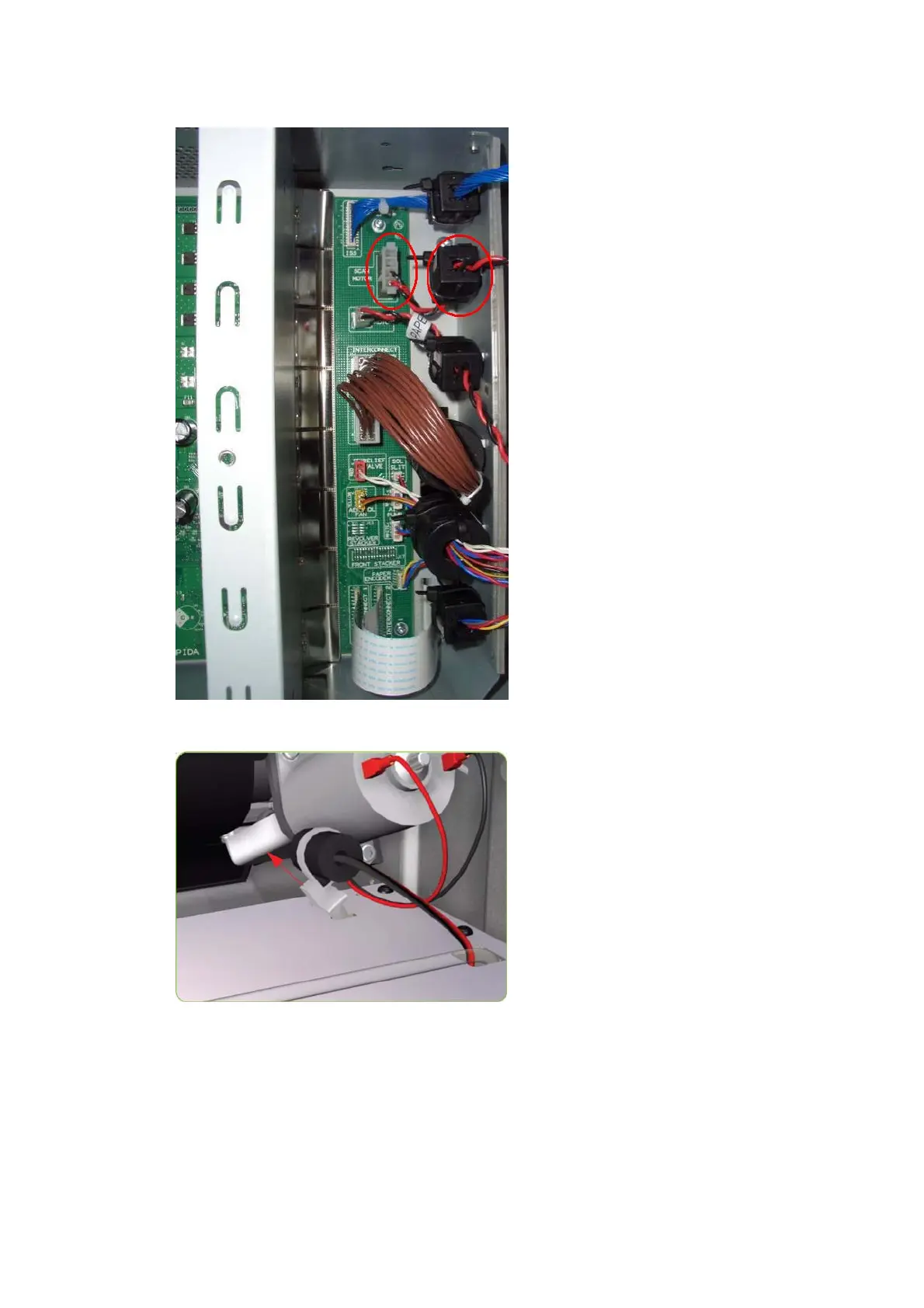

4. Disconnect the Media-Axis Motor cable from the PrintMech PCA and its ferrite.
5. Detach the clamp of the ferrite core of the Media-Axis Motor cable from the printer chassis.
314 Chapter 9 Printer part removal and installation ENWW
