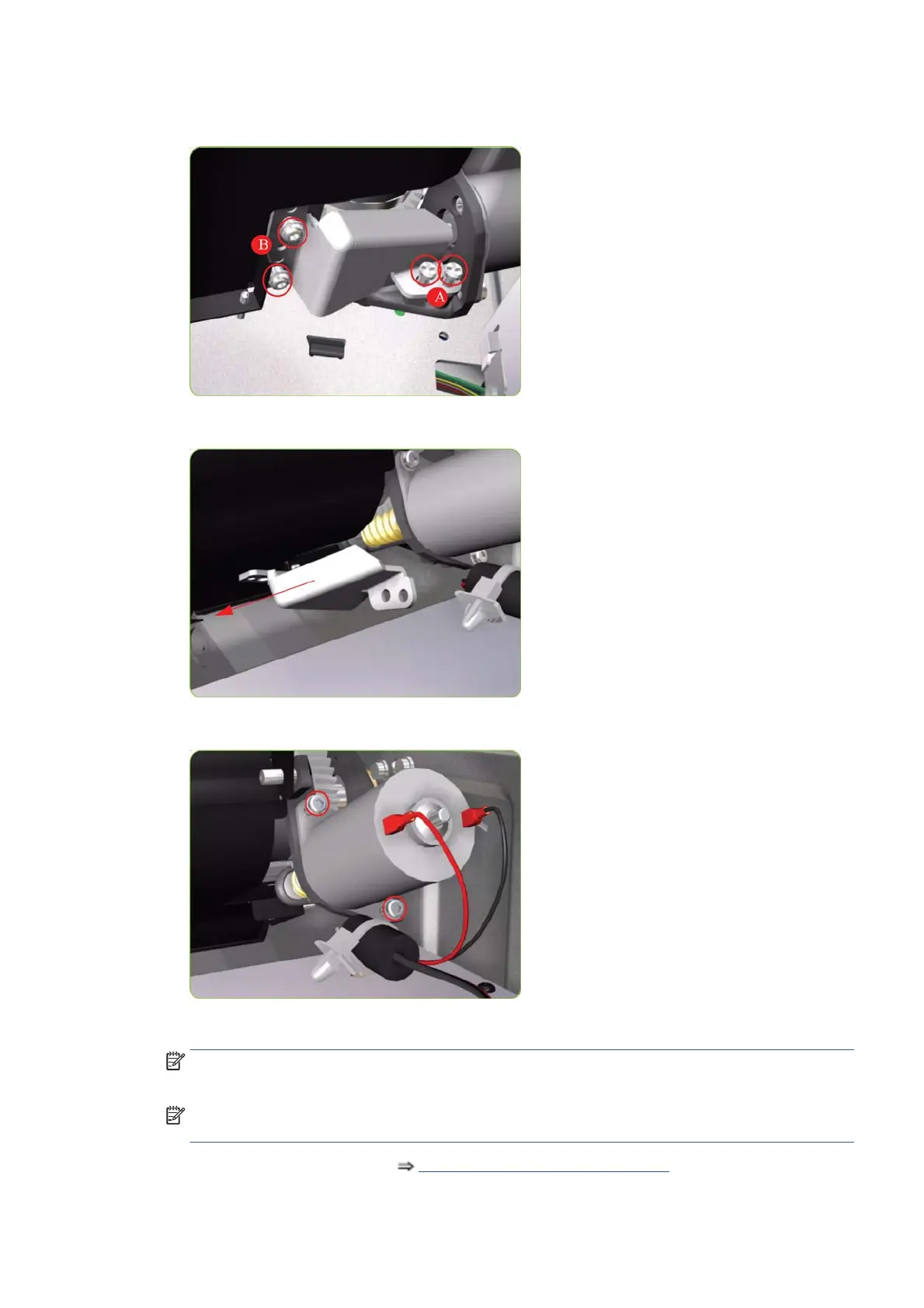

6. Remove the T-15 screws (Type R) identified (A) and loosen the T-15 screws (Type R) identified (B) that
secure the Media-Axis Motor.
7. Remove the Media-Axis Motor Bracket.
8. Remove two T-20 screws (Type B) that secure the Media-Axis Motor Bracket.
9. Remove the Media-Axis Motor from the printer.
NOTE: When reinstalling the parts, make sure you apply the grease (included with the support part) to
the gears.
NOTE: After installing the new Media-Axis Motor, make sure you perform the following Service
Calibration:
●
Paper-advance Calibration
Paper-advance calibration on page 115.
ENWW Disassembly order 315
