3. Remove the Right Smart Roll-loading System Cover See Smart Roll-loading System Cover, Right
on page 245.
4. Remove the Service Station
See Service Station on page 233.
5. Remove the OMAS
See Optical Media Advance Sensor (OMAS) on page 340.

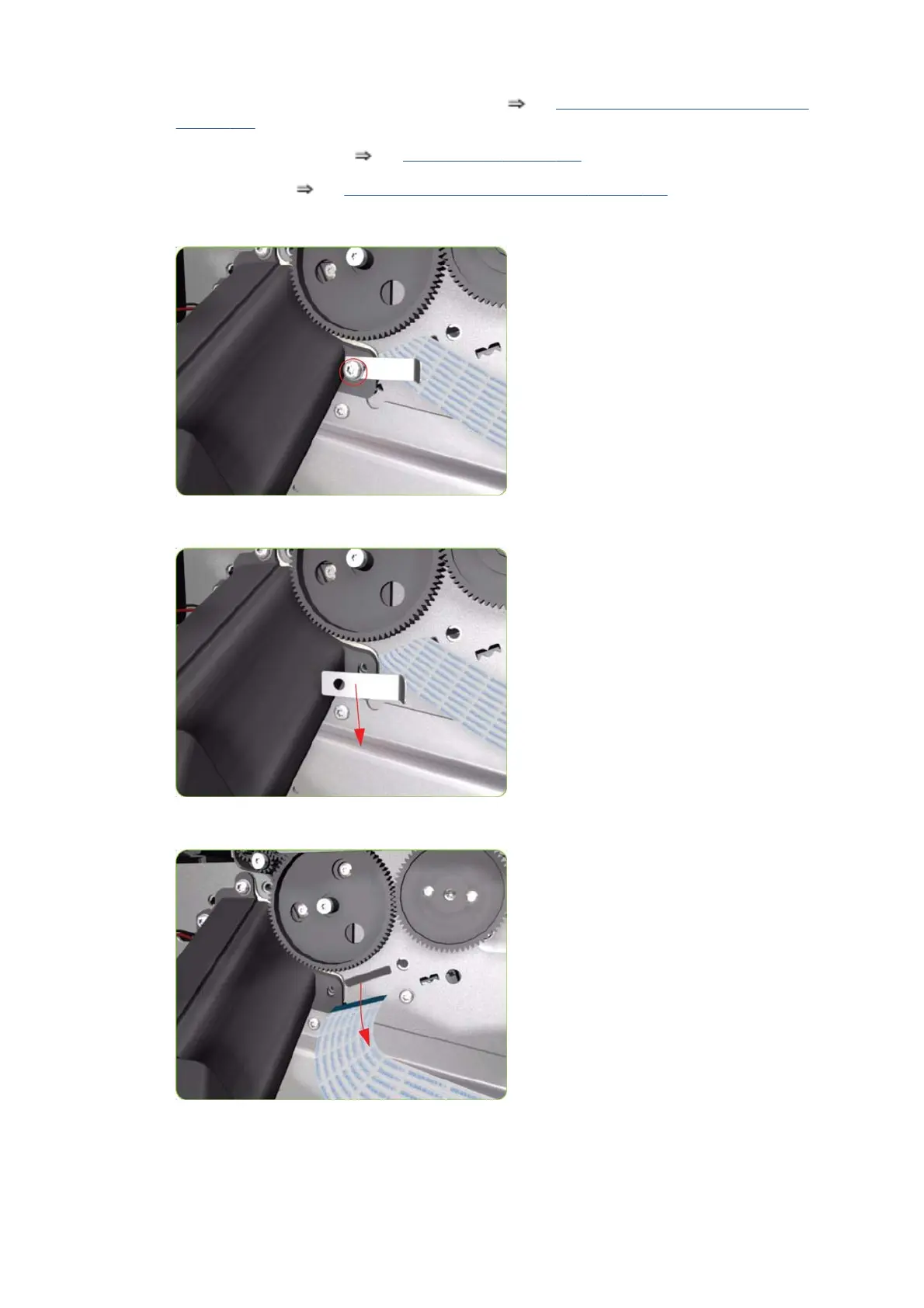

6. Remove one T-15 screw that secures the OMAS Cable clamp from the printer.
7. Remove the OMAS Cable clamp from the printer.
8. Carefully Pull the OMAS Cable out of the Vacuum Beam.
