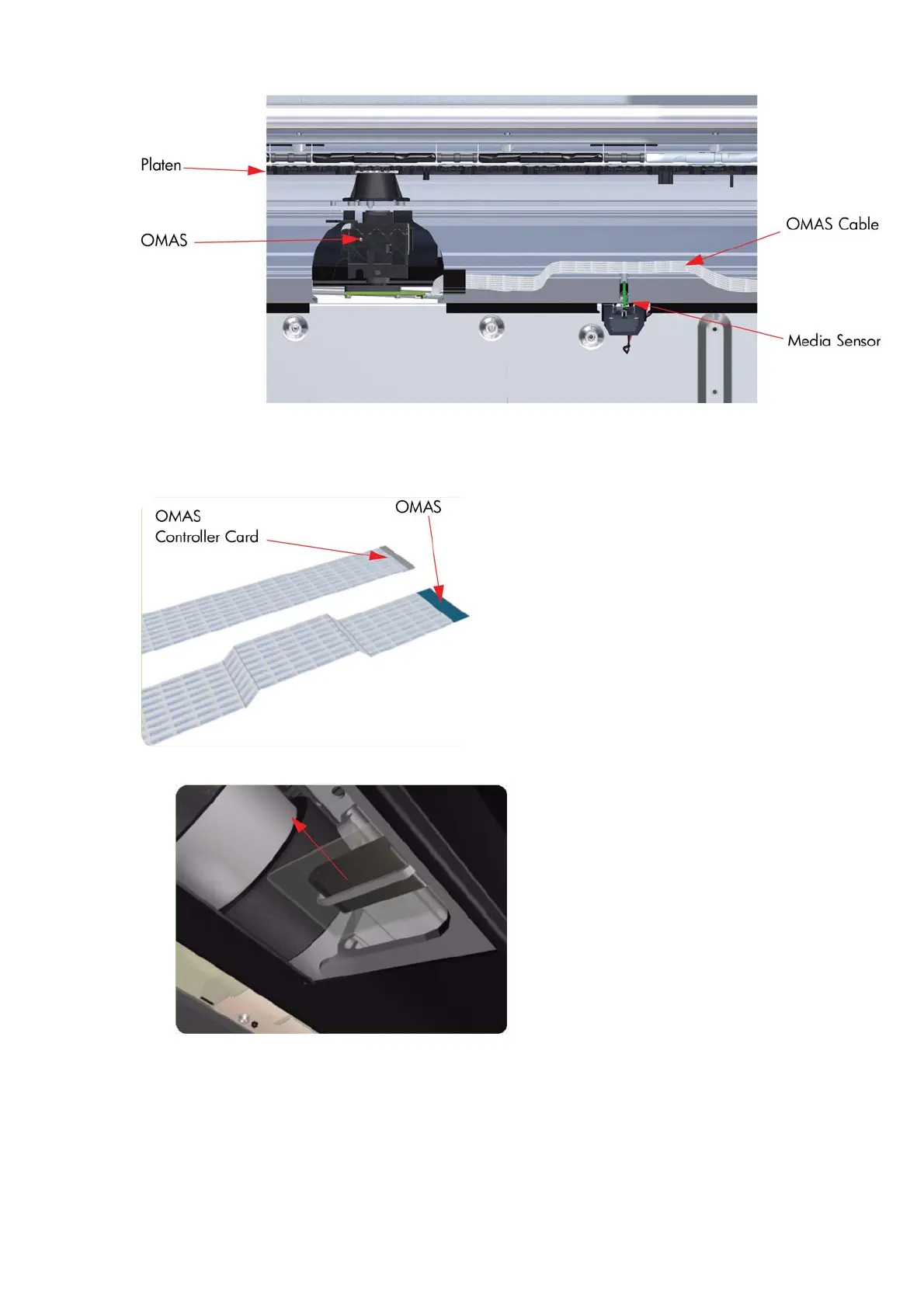

Before you can start to install the OMAS Cable you must first identify which end connects to which
component. The end of the cable that has the most perpendicular and diagonal folds is the end that
connects to the OMAS with the blue reinforcing on the top. The other end must be connected to the
OMAS Controller Card with the blue reinforcing on the bottom.
1. Carefully slide the Ferrite Core and its associated attachment plate out of the vacuum beam.
