Operation Manual – Mirroring

Quidway S3900 Series Ethernet Switches Chapter 1 Mirroring Configuration

Huawei Technologies Proprietary

1-15

Data monitoring device

PC1

Switch A

Switch B

Switch C

GE1/1/1

GE1/1/2

GE1/1/1

GE1/1/2

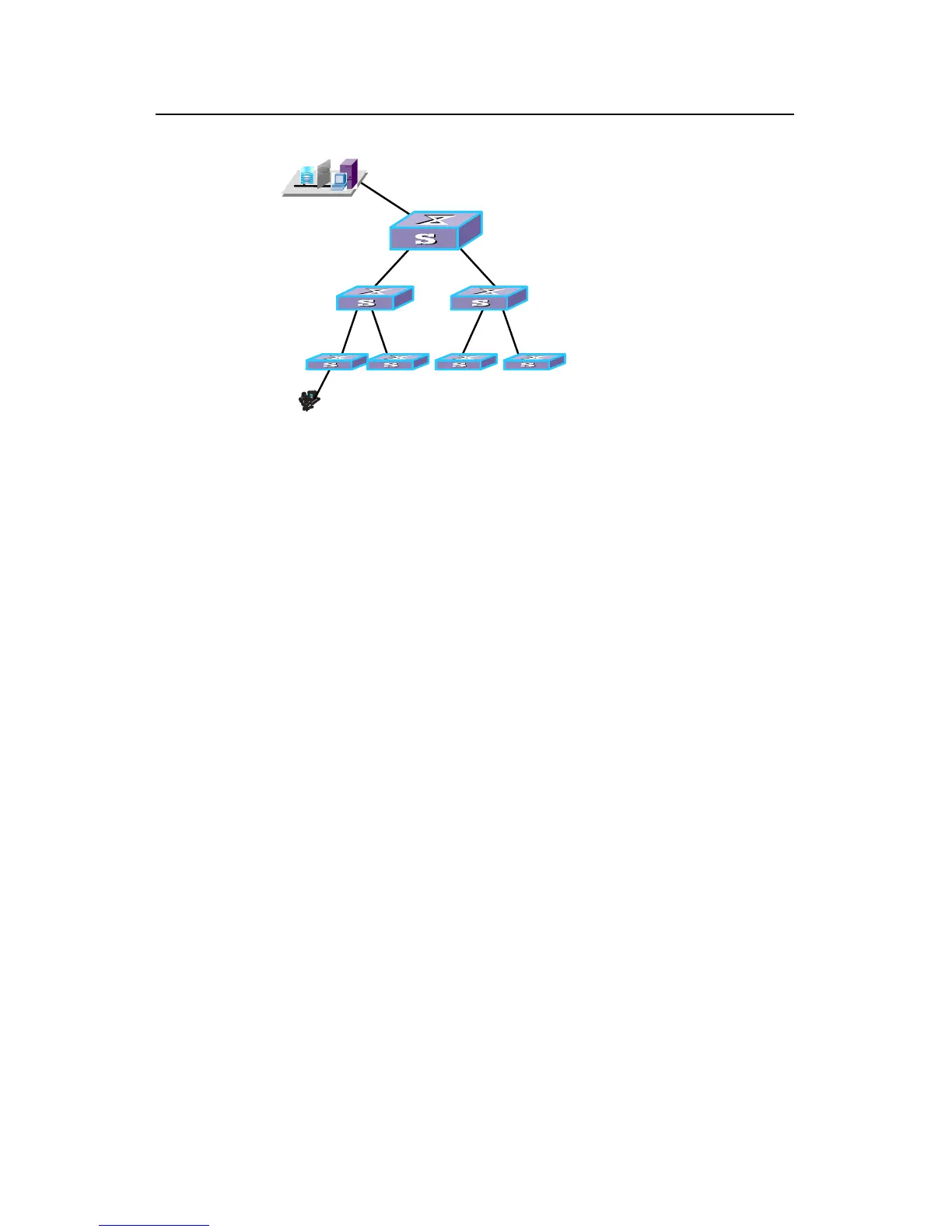

Figure 1-3 Network diagram for RSPAN

3) Configuration procedure

# Configure Switch C.

<Quidway> system-view

[Quidway] vlan 10

[Quidway-vlan10] remote-probe vlan enable

[Quidway-vlan10] quit

[Quidway] interface GigabitEthernet 1/1/1

[Quidway-GigabitEthernet1/1/1] port trunk permit vlan 10

[Quidway-GigabitEthernet1/1/1] quit

[Quidway] mirroring-group 1 remote-source

[Quidway] mirroring-group 1 mirroring-port GigabitEthernet 1/1/2 inbound

[Quidway] mirroring-group 1 reflector-port GigabitEthernet 1/1/3

[Quidway] mirroring-group 1 remote-probe vlan 10

[Quidway] display mirroring-group remote-source

mirroring-group 1:

type: remote-source

status: active

mirroring port:

GigabitEthernet1/1/2 outbound

reflector port: GigabitEthernet1/1/3

remote-probe vlan: 10

# Configure Switch B.

<Quidway> system-view

[Quidway] vlan 10

[Quidway-vlan10] remote-probe vlan enable
