Huawei Quidway S5600 Series User Manual

Operation Manual - DLDP
Quidway S5600 Series Ethernet Switches-Release 1510 Chapter 1
DLDP Configuration
Huawei Technologies Proprietary
1-10
II. Network diagram
SwitchB
SwitchA
PC
SwitchB
SwitchA
PC
SwitchB
SwitchA
PC
SwitchB
SwitchA
PC
GE1/0/50 GE1/0/51
GE1/0/50 GE1/0/51

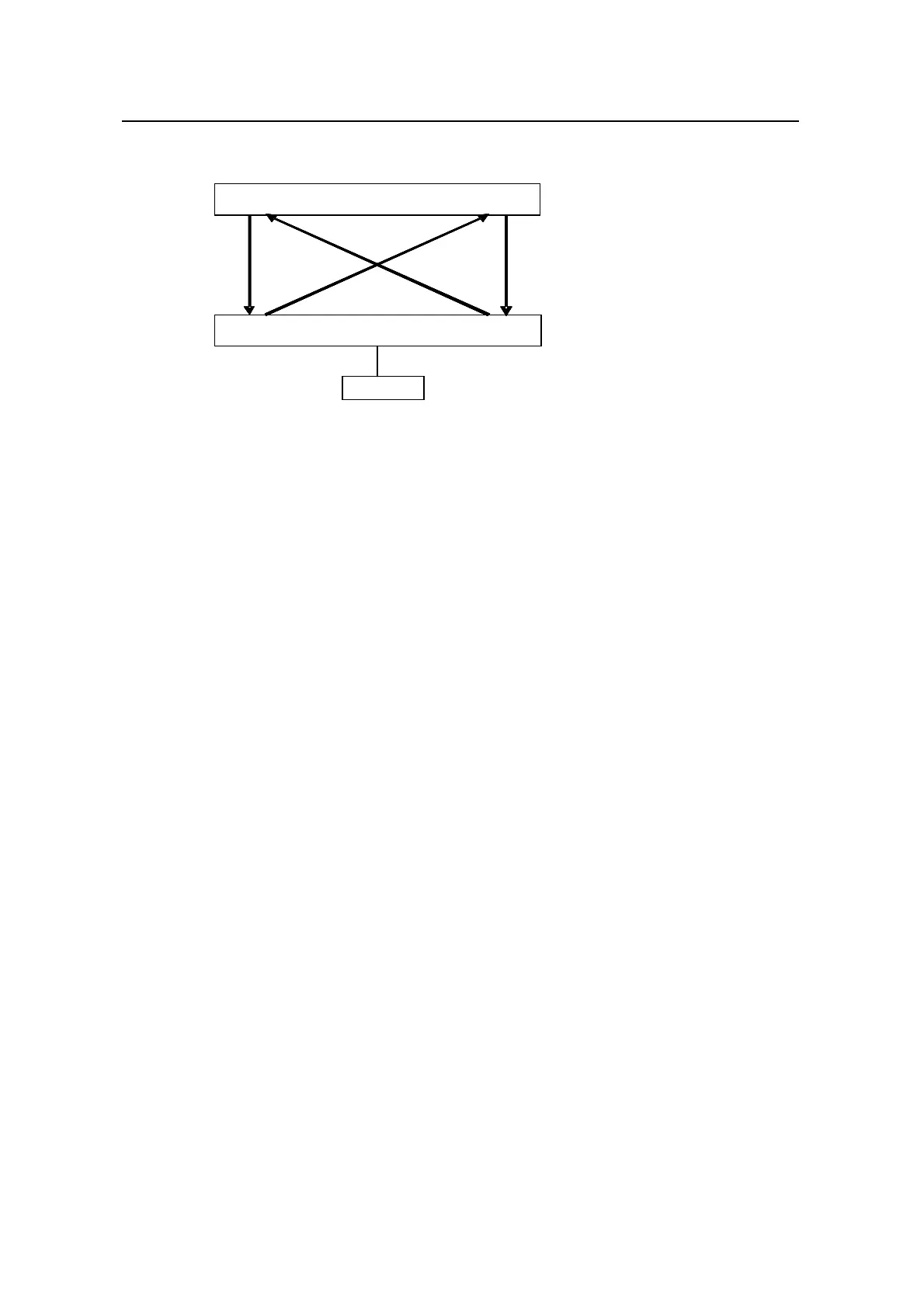

Figure 1-3 Fiber cross-connection
III. Configuration procedure
1) Configure Switch A
# Configure the ports to work in mandatory full duplex mode at the speed of 1000 Mbps.
<QuidwayA> system-view
[QuidwayA] interface gigabitethernet 1/0/50
[QuidwayA-GigabitEthernet1/0/50] duplex full
[QuidwayA-GigabitEthernet1/0/50] speed 1000
[QuidwayA-GigabitEthernet1/0/50] quit
[QuidwayA] interface gigabitethernet 1/0/51
[QuidwayA-GigabitEthernet1/0/51] duplex full
[QuidwayA-GigabitEthernet1/0/51] speed 1000
[QuidwayA-GigabitEthernet1/0/51] quit
# Enable DLDP globally
[QuidwayA] dldp enable
# Set the interval of sending DLDP packets to 15 seconds
[QuidwayA] dldp interval 15
# Configure DLDP to work in enhanced mode
[QuidwayA] dldp work-mode enhance
# Set the DLDP handling mode for unidirectional links to auto
[QuidwayA] dldp unidirectional-shutdown auto
# Display the DLDP status
[QuidwayA] display dldp 1
