Huawei Quidway S5600 Series User Manual

Operation Manual – MSTP
Quidway S5600 Series Ethernet Switches-Release 1510 Chapter 1
MSTP Configuration
Huawei Technologies Proprietary
1-40
upstream ports after they receive proposal packets from the upstream designated ports,
instead of waiting for agreement packets from the upstream switch. This enables
designated ports of the upstream switch to change their states rapidly.
1.7.2 Rapid Transition Configuration
I. Prerequisites
As shown in Figure 1-5, a Quidway series switch is connected to a partner's switch. The
former operates as the downstream switch, and the latter operates as the upstream
switch. The network operates normally.
The upstream switch is running a proprietary spanning tree protocol that is similar to
RSTP in the way to implement rapid transition on designated ports. Port 1 is a
designated port.
The downstream switch is running MSTP. Port 2 is the root port.
Port 1
Quidw ay Switch
Sw itch coming from other manufacturers
Port 2
Port 1
Quidw ay Switch
Sw itch coming from other manufacturers
Port 2

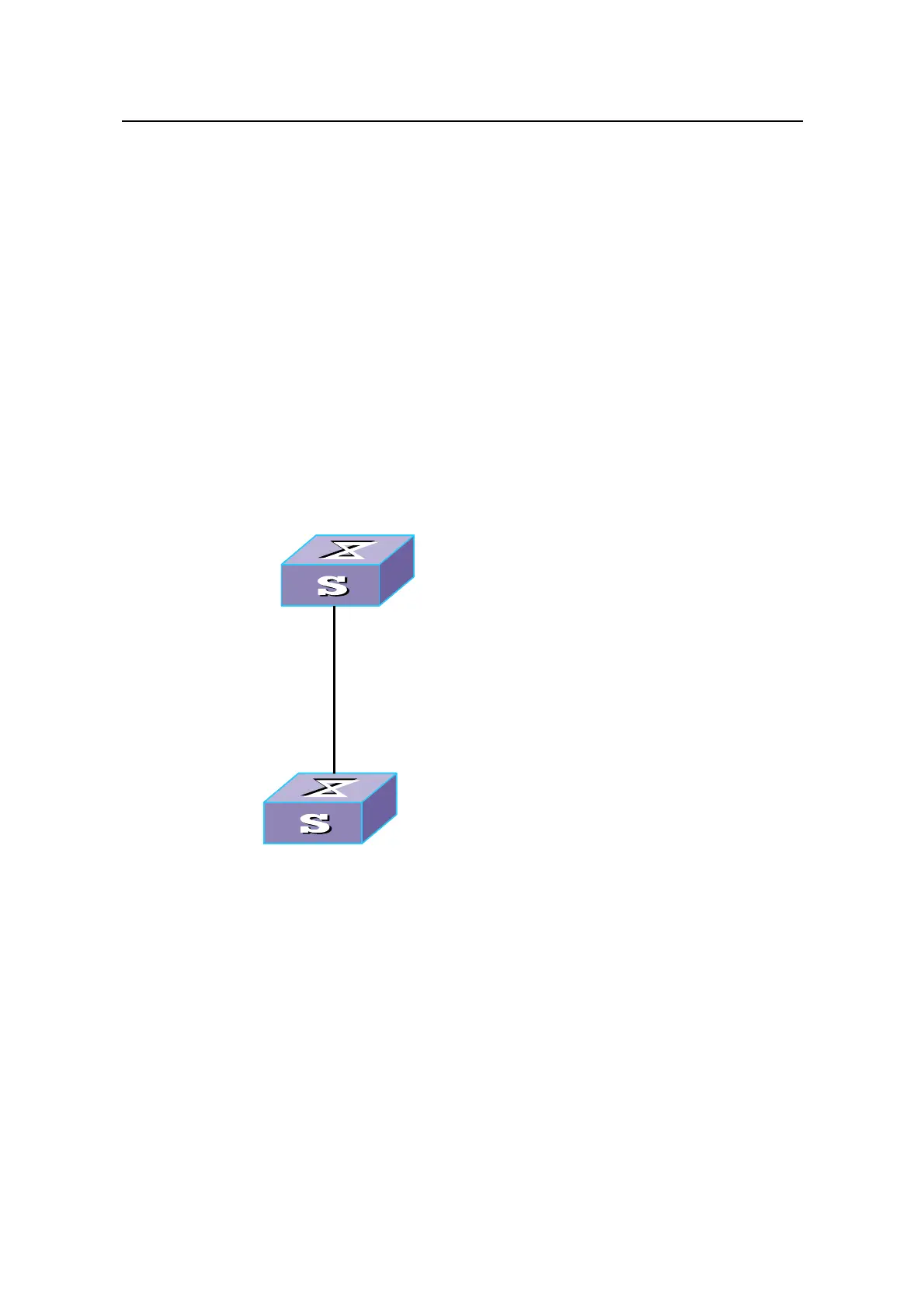

Figure 1-5 Network diagram for rapid transition configuration
II. Configuration procedure
1) Configure the rapid transition feature in system view.
