Timer Setting
Packet normally
received before
timeout
Timeout action
on the switch
Query response
timer
Query response
timeout time
IGMP report
message
Remove the port
from the member
port list of the
multicast group.
II. Layer 2 multicast with IGMP Snooping
The switch runs IGMP Snooping to listen to IGMP messages and map the host, the port
corresponding to the host, and the corresponding multicast MAC address.
Internet
Internet
IGMP-enabled router
IGMP message
IGMP message
IGMP Snooping-enabled
Ethernet switch

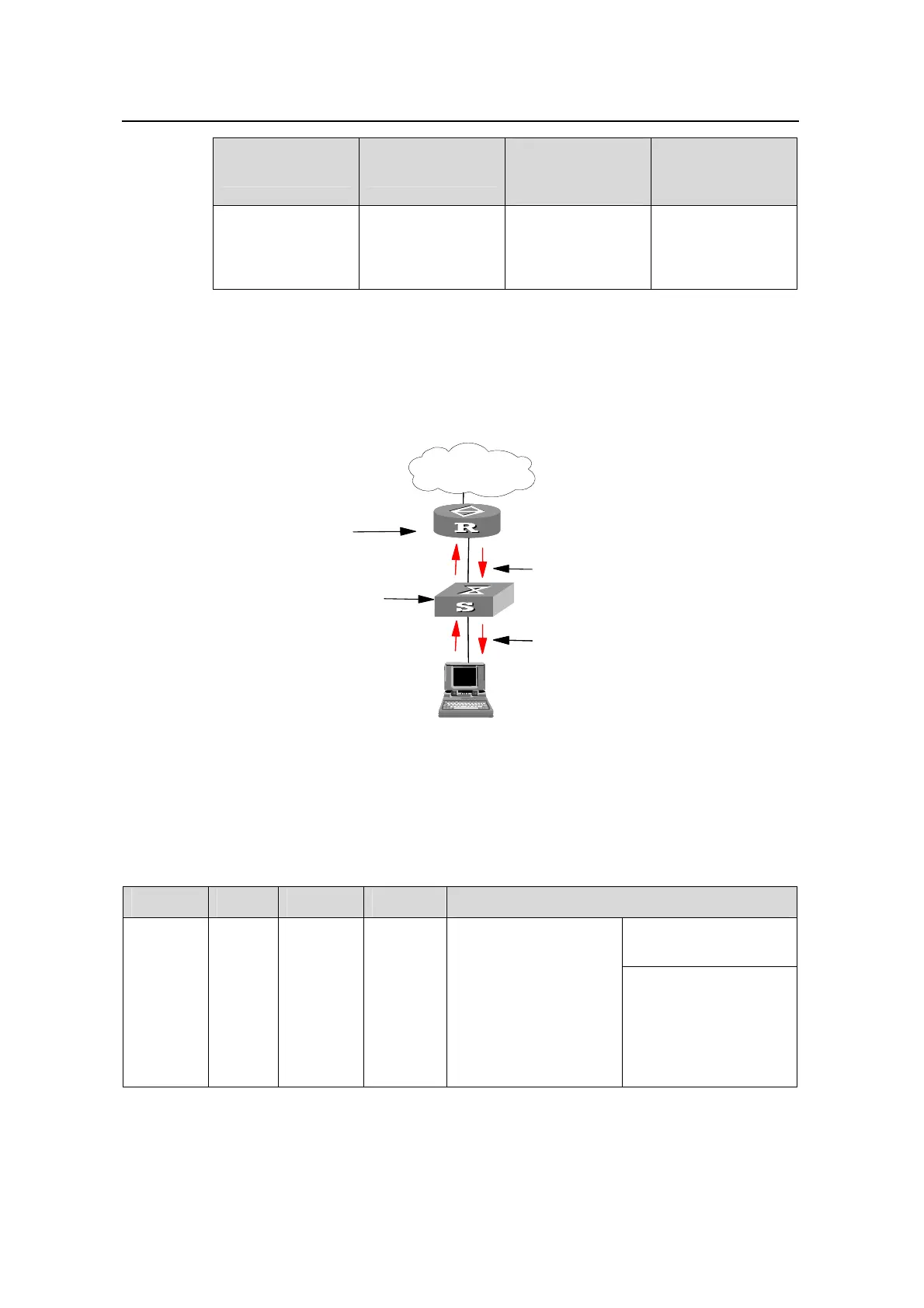

Figure 2-2 IGMP Snooping implementation
To implement Layer 2 multicast, the switch processes four different types of IGMP
messages it received, as shown in
Table 2-3.
Table 2-3 IGMP Snooping messages
Message Sender Receiver Purpose Switch action
If yes, reset the aging
timer of the router port
IGMP
general
query
message
Multica
st
router
and
multica
st
switch
Multicast
member
switch
and host
Query if
the
multicast
groups
contain
any
member
Check if the message
comes from the original
router port
If not, notify the
multicast router that a
member is in a
multicast group and
start the aging timer for
the router port
